Product Description

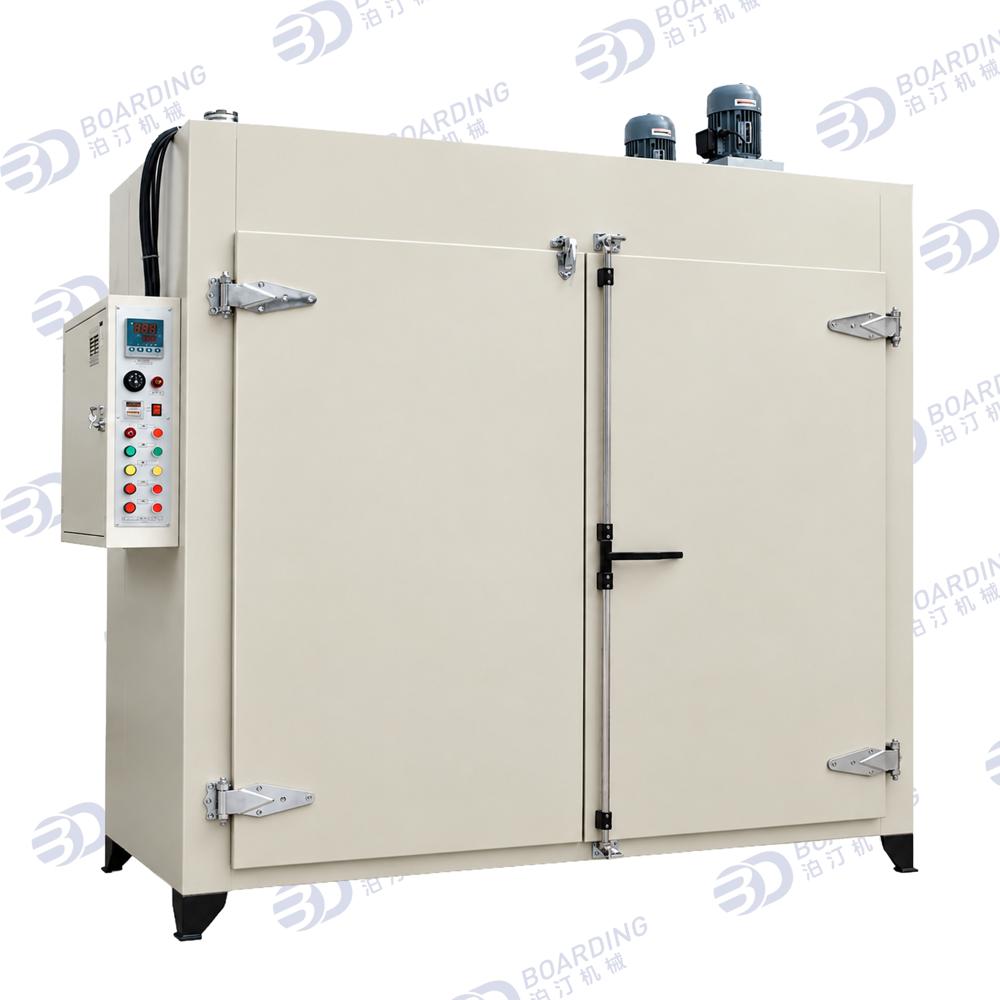

The Dry Furnace is a high-efficiency industrial drying oven specifically designed to dry residual water from bottles and metal containers following the electrolysis polishing process. Equipped with an intelligent digital temperature controller, heating tube elements, and cyclic hot-air kinetic energy distribution, it ensures uniform heating, rapid moisture evaporation, and continuous large-capacity output.

Key Machinery Features:

• Intelligent Temperature Controller: Features precision digital temperature regulation for safe and accurate thermal processing.

• Cyclic Hot Air Circulation: Utilizes cyclic wind kinetic energy to distribute heat evenly throughout the furnace chamber.

• Heating Tube Technology: Powered by industrial heating tubes capable of reaching heating temperatures up to 300C.

• High Production Efficiency: Delivers an impressive capacity of 20,00024,000 pcs finished in 1 day (8 hours) and 20,00024,000 pcs per 10-hour shift.

Industrial Applications:

• Water evaporation and thermal drying for stainless steel bottles after electrolysis

• High-temperature moisture removal for cylindrical metal vessels and industrial components

Technical Sections:

• Thermal & Circulation System: Controlled via an intelligent temperature controller operating heating tubes up to 300C with forced cyclic air circulation for optimized thermal efficiency.

• Dimensions & Power Specs: Features an outer dimension of 2000 x 1600 x 2400 mm, an inner chamber dimension of 1700 x 1400 x 1300 mm, and a net weight of 1000 kg. Runs on 380V/415V voltage with a 19 kW rated power rating.

•


Frequently Asked Questions (FAQ):

• Q: What is the main application of this dry furnace?

• A: It is designed to dry residual water after the electrolysis polishing process.

• Q: What is the maximum heating temperature of the furnace?

• A: The furnace can achieve a heating temperature of 300C.
