Product Details:
- Nominal Force 1600 kN to 4000 kN
- Usage Industrial
- Power Source Hydraulic
- Condition New
- Size Standard
- Height 4000 Millimeter (mm)
- Dimension (L*W*H) 2600*1900*4000 Millimeter (mm)
15000 USD ($)/Piece
X

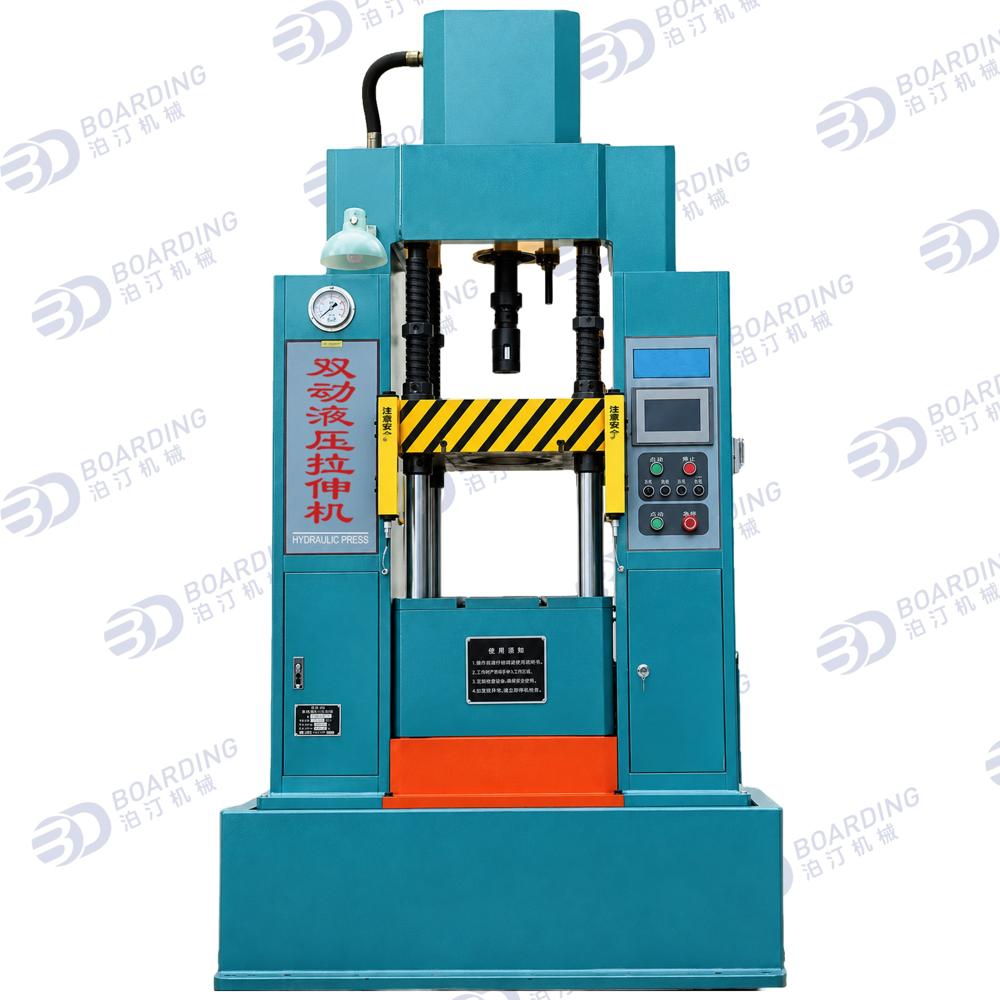

Cookware PLC Double Acting Hydraulic Deep Drawing Machines Price And Quantity
- 15000 USD ($)/Piece
- 1 Piece
Cookware PLC Double Acting Hydraulic Deep Drawing Machines Product Specifications
- 1900 Millimeter (mm)
- 1000 mm x 1000 mm to 2500 mm x 2500 mm
- Hydraulic
- Blue
- 22000 Watt (w)
- Included / Optional high-flow type
- Industrial
- Hydraulic Deep Drawing Machine
- High-Efficiency Hydraulic Motor
- Optional
- 415 Volt (v)
- Digital / Analog
- 1600 Millimeter (mm)
- 2600*1900*4000 Millimeter (mm)
- Double Solenoid Valve
- 4000 Millimeter (mm)
- 1600 kN to 4000 kN
- Standard
- 7800 Kilograms (kg)
- Integrated, Rexroth / Yuken
- New
- 1340 Millimeter (mm)
- PLC automatic / Manual
- Rust Proof Paint/ Powder Coating
- External Heat Exchanger
- 500 L to 2000 L
- Automobile Parts, Kitchenware, Electrical Enclosures, Utensils, Panels
- Light Curtains, Emergency Stop Switch, Safety Interlocks
- Adjustable up to 400 mm/sec
- Four Pillar or H Frame (Modular Construction)
- Variable (Approx. 12T - 40T depending on model)
- Up to 1000 mm
- Hard Chrome Plated Alloy Steel
- Optional Table Heating
Cookware PLC Double Acting Hydraulic Deep Drawing Machines Trade Information
- Shanghai
- 1 Piece Per Month
- 60 Days
- Yes
- Contact us for information regarding our sample policy
- Iron Box. Wooden Box.
- All India
Product Description
After becoming one of the leading manufacturer, trader, supplier and exporter, we are proficient to present an excellent range of PLC Double acting Hydraulic Deep Drawing Machines. The machine is equipped with PLC system that is used for automation process and used for performing various loading and unloading process. The compact design of Hydraulic Deep Drawing Press Machine is manufactured by selecting finest grade of components, most modern machines and contemporary technology. Our offered assortment of PLC Double acting Hydraulic Deep Drawing Machines is obtainable by our clients in different specifications to accomplish their requirements.
Features:
- Simple to install
- Compact size
- Excellent capacity
Company Name:Suzhou Boarding Industrial Co.,Ltd:
Machinery Name:PLC Double-acting Hydraulic Deep Drawing Machines
Model No.: YF80-AM series
Stroke for option:300/340mm
The characters of Our Double-acting Hydraulic Deep Drawing Machines:
- PLC control
- Double-acting
- Small Volume
- Faster speed
- Smaller volume
- Bigger pressure
- Saving more power energy
- Patented cranks to support the working table to move up
- Multifunction for deep drawing,blanking,trimming,punching press,etc.
- The robot arms are available to save more labors
| Technical Specification: | ||||||||||||||
| Models | Drawing force (kN) | Working pressure (Mpa) | Drawing Depth (mm) | Cycles Time / min | Max Blanking (mm) | Thickness (mm) | Table Size (L x W) | Mold Holding Screw (mm) | Max Clamping force (T) | Center hole dia (mm) | Real Working table area (mm) | Motor Power (kW) | Weight (kg) | Dimension (L x W x H) |
| YF30-AM | 300 | 15 | 0-180 | 01/11/14 | 375 | 0.3-1.5 | 535x435 | M42x4 | 80-150 | 230 | 375x435 | 7.5 | 1800 | 1400x1040x2400 |
| YF46-AM | 460 | 18 | 0-230 | 01/09/13 | 415 | 0.3-2.0 | 590x510 | M42x4 | 245 | 415x510 | 11 | 2300 | 1480x1120x2700 | |
| YF65-AM | 650 | 20.7 | 0-230 | 08/12/16 | 455 | 0.4-2.5 | 685x580 | M42x4 | 290 | 455x580 | 15 | 2800 | 1566x1200x2800 | |
| YF65-AM | 800 | 0-280 | 08/11/16 | 3000 | 1566x1200x3100 | |||||||||
| YF80-AM | 21 | 0-300 | 01/10/16 | 570 | 0.4-2.8 | 795x695 | M50x4 | 100-120 | 352 | 570x695 | 15 | 3800 | 1700x1340x3150 | |
| YF80-AM | 0-340 | 01/07/13 | 4000 | 1700x1340x3300 | ||||||||||
| YF100-AM | 1000 | 20.5 | 0-310 | 06/11/16 | 715 | 0.5-3.5 | 985x810 | M72x6 | 120-300 | 400 | 715x810 | 15 | 5000 | 1800x1420x3400 |
| YF100-AM | 1000 | 20.5 | 0-440 | 05/07/16 | 715 | 0.5-3.5 | 985x810 | M72x6 | 400 | 715x810 | 15 | 5700 | 1800x1420x3600 | |
| YF120-AM | 1200 | 19.5 | 0-310 | 05/09/16 | 715 | 0.5-4.0 | 985x810 | M72x6 | 400 | 715x810 | 18.5 | 5500 | 2600x1900x3450 | |
| YF120-AM | 1200 | 19.5 | 0-310 | 05/09/16 | 970 | 0.5-4.0 | 1280x1080 | M72x6 | 500 | 970x1080 | 18.5 | 7000 | 2600x1900x3450 | |
| YF120-AM | 1200 | 19.5 | 0-340 | 05/09/16 | 970 | 0.5-4.0 | 1280x1080 | M72x6 | 500 | 970x1080 | 18.5 | 7500 | 2600x1900x3500 | |
| YF160/80AM | 1600 | 21 | 0-300 | 01/05/67 | 520 | 0.5-5.0 | 795x695 | M72x6 | 352 | 520x695 | 18.5 | 4300 | 2600x1900x3500 | |
| YF160/100-AM | 1600 | 21 | 0-310 | 05/07/16 | 675 | 0.5-7.0 | 795x695 | M72x6 | 400 | 686x810 | 18.5 | 5700 | 1800x1420x3400 |
Precision Hydraulic Deep Drawing Technology
Designed for deep drawing of metals, this machine delivers up to 4000 kN nominal force and accommodates strokes up to 1000 mm. The modular Four Pillar or H Frame construction ensures stable performance, making it ideal for heavy-duty and high-volume production environments. The hard chrome plated alloy steel main cylinder guarantees longevity and precision.
Enhanced Safety and Automation
Operator safety is prioritized through integrated light curtains, emergency stop switches, and safety interlocks. The Siemens S7 PLC system allows both automatic and manual control, offering versatility for diverse operational needs. Smart proportional valves and digital/analog pressure gauges ensure precise control and ease of use.
Wide-Ranging Industrial Applications
This hydraulic deep drawing machine is used in manufacturing automobile parts, kitchenware, electrical enclosures, utensils, and panels. With customizable table sizes and optional table heating, it caters to various production requirements. Its rust-proof surface finish and robust engineering make it suitable for Indian and global markets.
FAQ's of PLC Double Acting Hydraulic Deep Drawing Machines:
Q: How does the PLC Double Acting Hydraulic Deep Drawing Machine ensure operator safety during operation?
A: Operator safety is enhanced with multiple features such as light curtains to detect intrusions, emergency stop switches for immediate shutdown, and safety interlocks to prevent unsafe machine access during operation. These mechanisms work together to minimize occupational hazards.Q: What types of materials and industry applications are supported by this machine?
A: This deep drawing machine is suitable for drawing mild steel (MS) and is extensively used in the automobile, kitchenware, electrical enclosure, utensil, and panel manufacturing industries. Its versatility accommodates a wide range of metal forming tasks.Q: When should I opt for optional table heating in the drawing process?
A: Optional table heating is recommended when working with materials or processes where elevated temperatures can reduce material stress, improve formability, or aid in achieving precise component dimensions. It is especially beneficial for complex deep-drawn shapes or specialty metals.Q: Where can the PLC Double Acting Hydraulic Deep Drawing Machine be installed or used?
A: This machine is designed for heavy-duty industrial setups, including large manufacturing plants, component fabrication units, and specialized production facilities across India and for export. Its customizable size and features make it adaptable to different factory requirements.Q: How is the machine's drawing speed controlled, and what range does it offer?
A: Drawing speed is adjustable up to 400 mm/sec and can be fine-tuned using the PLC control system for the specific requirements of each job. This flexibility allows for optimization of productivity, precision, and material compatibility.Q: What benefits does the external oil cooling system provide?
A: The external heat exchanger-based oil cooling system maintains hydraulic fluid at optimal temperatures, preventing overheating and ensuring continuous, efficient operation. This extends machine life and supports consistent production quality.Q: What makes the frame design (Four Pillar or H Frame Modular Construction) advantageous?
A: The modular Four Pillar or H Frame structure offers superior stability, precision alignment, and distribution of mechanical loads. This robust design improves durability, ease of maintenance, and adaptability for varied production capacities.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
