Product Description

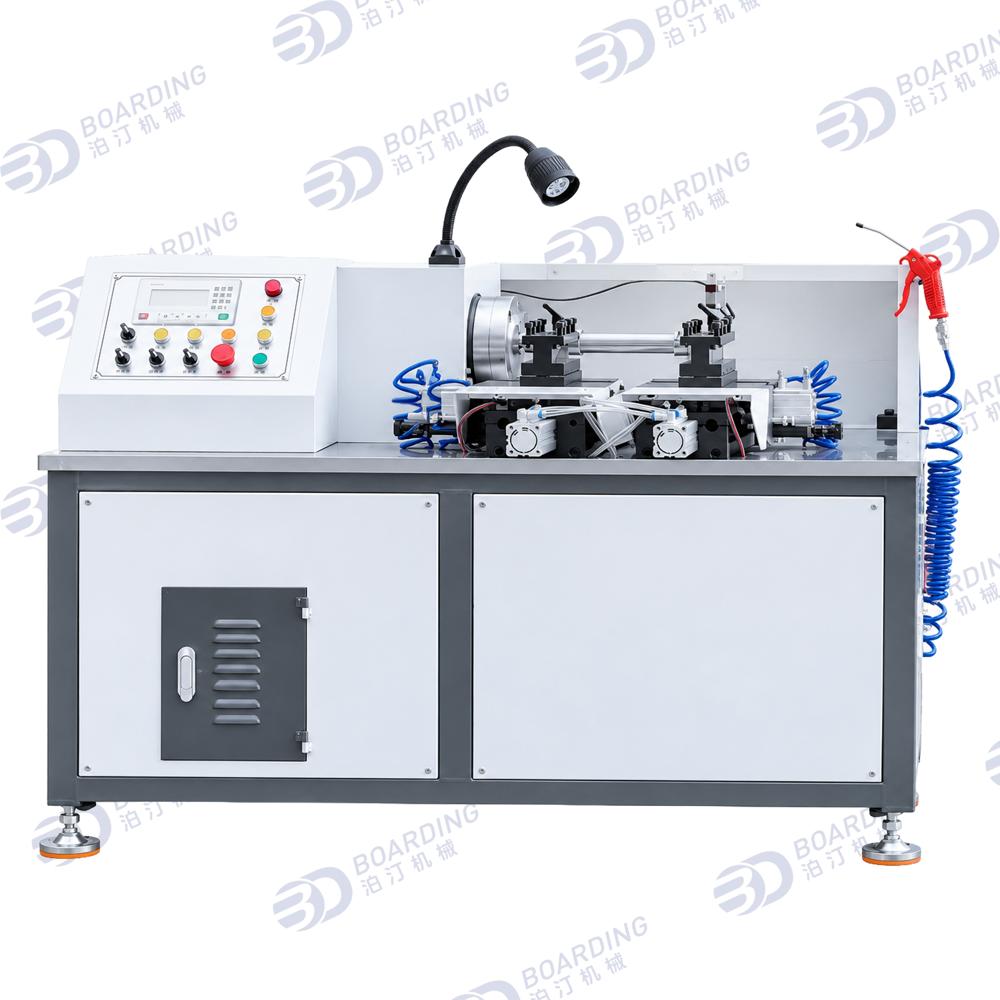

The Horizontal Mouth and Bottom Trimming Machine is an efficient industrial metalworking solution designed specifically for trimming the mouth and bottom of bottles. Featuring a compact horizontal structural design that saves floor space and lowers investment costs, this machine integrates PLC touch screen control, frequency-controlled spindle speeds, and a four-axis cylinder drive to deliver high-speed, high-output precision cutting.

Key Machinery Features:

• PLC + Touch Screen Control: Controlled via an intuitive PLC and HMI touch screen system for simple, user-friendly operation.

• Frequency-Controlled Spindle Speed: Spindle speed is managed by a frequency converter, allowing easy adjustments tailored to different product dimensions.

• Four-Axis Cylinder Drive System: Utilizes a four-axis cylinder drive with booster buffer point switch limits to ensure fast operating speeds and high productivity.

• Space-Saving Horizontal Structure: Compact horizontal configuration occupies a smaller footprint compared to vertical structures, reducing overall equipment and operating costs.

Industrial Applications:

• Mouth and bottom trimming for stainless steel bottles, vacuum flasks, and metal containers

• Edge cutting and finishing on tubular metal workpieces

Technical Sections:

• PLC & HMI Automated Control: Integrates reliable PLC control with smooth pneumatic and cylinder-driven mechanics to streamline manual loading/unloading and automated bottom/mouth trimming processes.

• Compact Efficiency & Performance: Combines variable spindle frequencies with robust horizontal framing to maintain clean cuts, fast cycle times, and low maintenance.

•


Frequently Asked Questions (FAQ):

• Q: What is the production capacity of this trimming machine? A: It delivers a high output of 4,0004,800 pcs per shift.

• Q: What pipe dimensions can be processed? A: It handles pipe diameters from 30 mm to 120 mm and lengths from 80 mm to 350 mm.
