Product Description

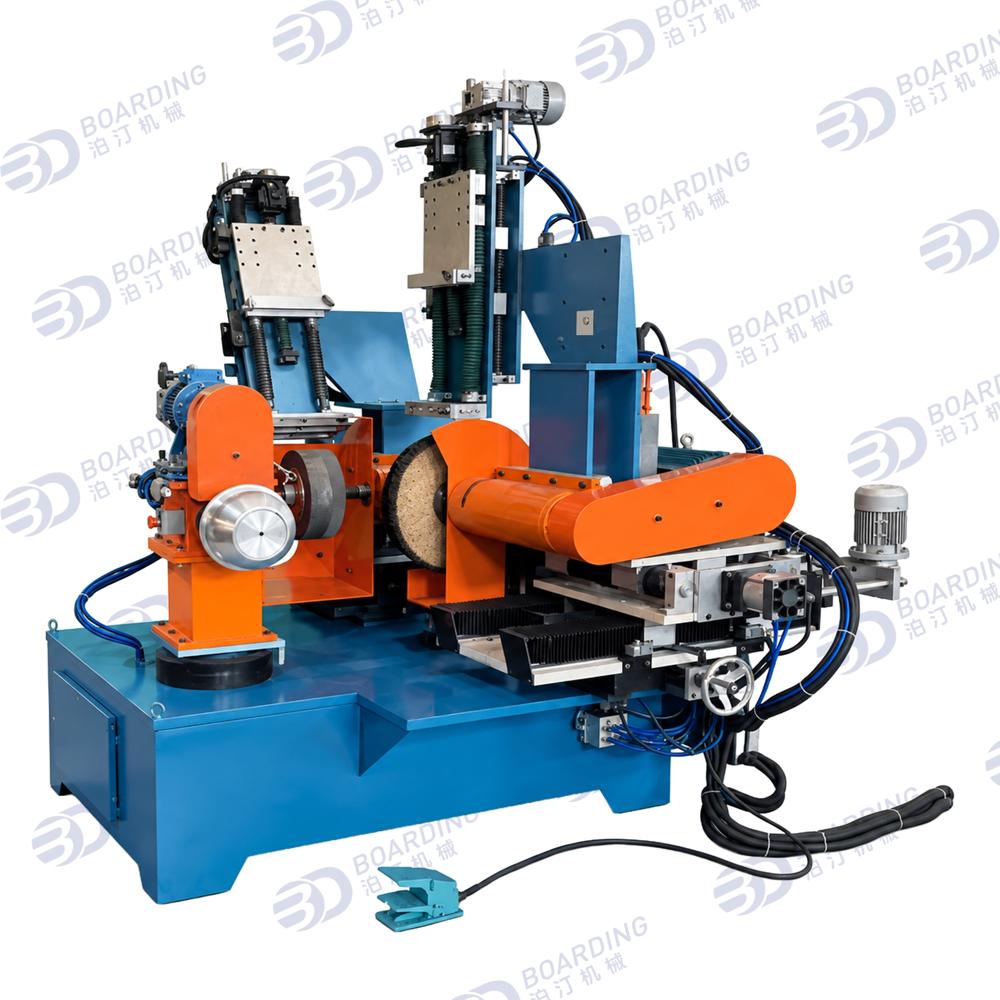

The Outside Bottom and Body Polishing Machine with Auto Waxing and Feeding is a high-efficiency surface treatment solution designed for external bottom and outer wall polishing of metal containers. Equipped with dual polishing motors (11 kW for outer body and 7.5 kW for bottom), an integrated auto-waxing and auto-feeding system, and a 0.35 kW compensated motor, it handles workpieces up to 350 mm in diameter and 250 mm in height. Operating at a spindle speed of 2200 rpm with stepless workpiece speed control (20120 rpm), it ensures smooth, high-gloss mirror finishes for mass production lines.

Key Features & Highlights:

• Auto Waxing & Feeding Integration: Features automated waxing and workpiece feeding systems to optimize polishing consistency and continuous operation.

• Dual-Motor External Finishing: Powered by an 11 kW motor for outer body polishing and a 7.5 kW motor for bottom surface polishing.

• Automatic Compensation Control: Equipped with a 0.35 kW compensated motor to maintain optimal polishing pressure and adjust for wheel wear.

• Stepless Speed Adjustment: Driven by a 0.75 kW workpiece motor with variable rotation speeds from 20 to 120 rpm.

Industrial Applications: Widely applied for external surface mirror polishing, deburring, and finishing of stainless steel cookware, soup pots, stockpots, kettles, frying pans, and cylindrical metal hardware containers.

Frequently Asked Questions (FAQ):

• Q: What is the maximum workpiece size processed by Model DHPR-450B?

• A: It supports maximum workpiece dimensions of 350 mm in diameter by 250 mm in height.

• Q: What polishing wheel sizes are compatible with this machine?

• A: It accommodates polishing wheels up to 450 x 220 mm for the outer body and 450 x 150 mm for the bottom.
