Product Description

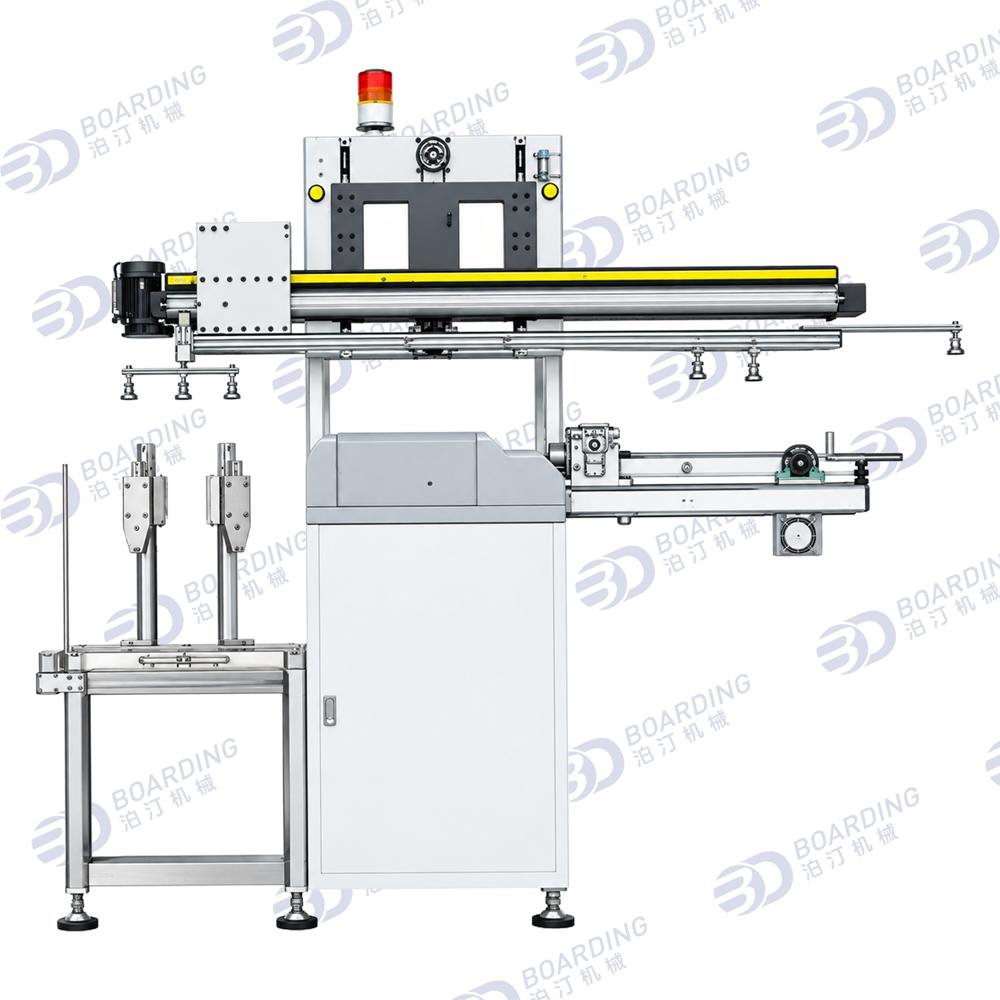

The Auto Feeder (1 pick 1push) / Single-table Loading Manipulator is a high-precision, 2-axis industrial automation manipulator engineered for automatic sheet metal loading in stamping, pressing, and deep drawing lines. Featuring a high-precision servo drive, Taiwan Yonghong PLC, and Shenzhen FanYi touch screen control, it achieves high feeding accuracy 0.05 and production capacities up to 400600 pcs/h.

Key Features & Highlights:

• High-Precision 2-Axis Servo Control: Driven by 2 axes (J1, J2) with Zhejiang Dongling servo motors and Sanhuan guide rails, delivering exceptional feeding repeatability of 0.05mm

• .

• Reliable Single Sheet Separation: Equipped with Haichen brand single sheet separation sensors to prevent double-blank feeding and protect dies.

• Versatile Sheet Handling: Supports round, square, and special/irregular sheet shapes ranging from 50 mm to 600 mm in size with a long forward/backward stroke of 1250 mm.

• Efficient Output: Achieves production rates of 400600 pcs/h, significantly improving automation efficiency and saving manual labor costs.

Industrial Applications: Widely applied in automated sheet metal stamping lines, cookware manufacturing (pots, pans, lids), hardware presses, home appliance panel stamping, and automatic production cells.

Frequently Asked Questions (FAQ):

• Q: What sheet sizes and shapes can this loading manipulator handle?

  • A: It can process round, square, and special/irregular shaped metal sheets in sizes ranging from 50 mm to 600 mm.

• Q: How does the machine prevent picking up two sheets at once?

  • A: It utilizes a premium Haichen brand single sheet separation detection sensor to ensure only one blank is loaded at a time.
