Product Description

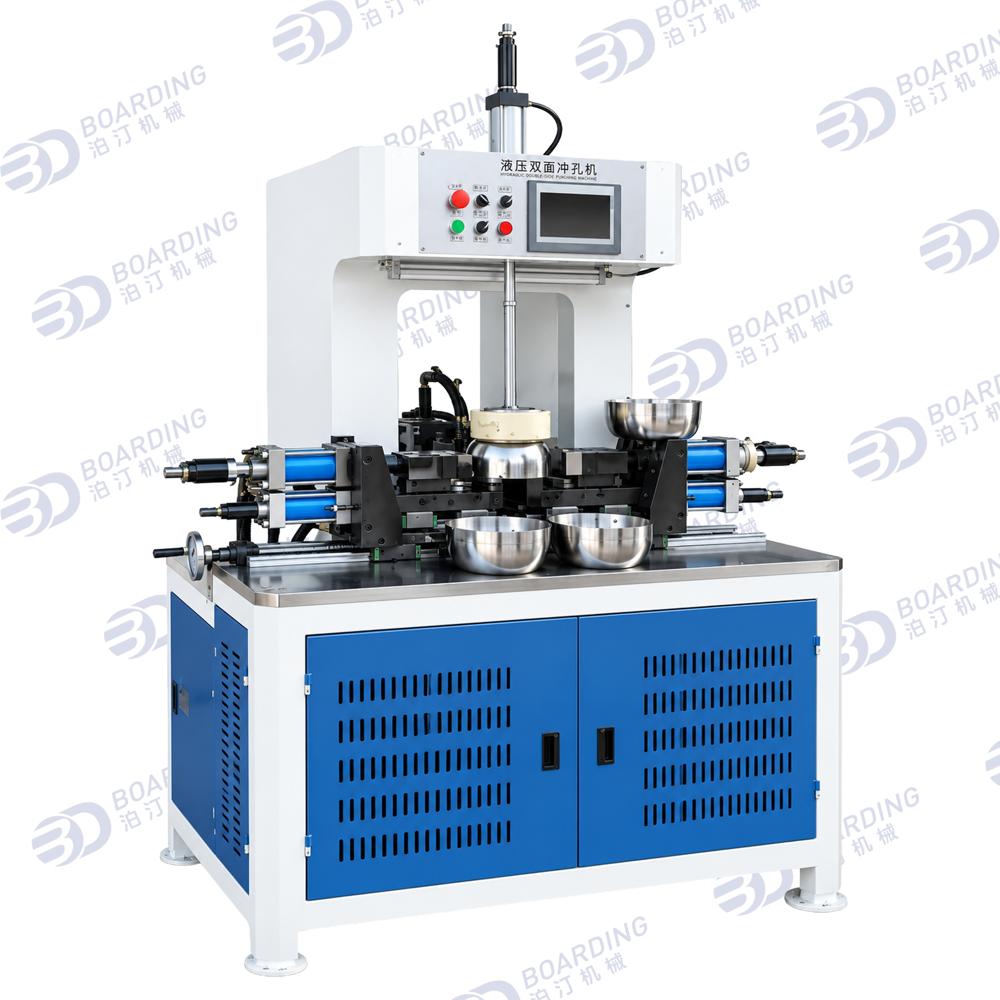

The Double Side Nozzle Punching & Stamping Machine is an integrated multi-station metal forming machine designed for kettle spouts, teapots, and cookware body processing. Powered by a 5.5 kW main motor with double-pump hydraulic control, this machine combines spout punching, side punching, and precision stamping operations into a single workstation. Capable of handling workpiece diameters up to 350 mm, it significantly streamlines production workflows, reduces manual handling, and enhances overall fabrication efficiency.

Key Technical Features & Advantages

• 3-Station Integrated Operation: Combines double-side punching and spout stamping in one compact setup, reducing handling steps and boosting production efficiency.

• Double Pump Hydraulic Control: Driven by a 5.5 kW motor with a double-pump hydraulic system, ensuring balanced, heavy-duty pressure across all processing cylinders.

• Synchronous Dual-Side Processing: Pierces side holes and forms spout connections simultaneously with stable accuracy.

• Versatile Capacity Range: Accommodates workpiece processing diameters up to 350 mm, heights up to 280 mm, and adjustable hole spacing from 45 mm to 110 mm.

• Compact Rigid Construction: Built with an 850 kg cabinet frame (1300 x 1000 x 1800 mm), providing high structural stability and low vibration during multi-station punching.

•


Industrial Applications

• Kettle and teapot spout hole punching and flange stamping

• Dual-side handle hole piercing and nozzle forming for metal cookware

• Integrated hole punching and stamping for stainless steel, aluminum, and brass deep-drawn vessels

•


Frequently Asked Questions (FAQ)

Q1: What functions does this 3-station machine perform?

A: It integrates double-side hole punching with kettle nozzle/spout stamping on a single machine frame, eliminating the need for separate operations.

Q2: What is the maximum processing diameter for this model?

A: It supports workpiece processing diameters up to 350 mm and material thicknesses from 0.8 mm to 5 mm.
