Product Details:
- Remote Control Yes
- IP Rating IP 54
- Load Capacity 5 Kilograms (kg)
- Warranty 1 Year
- Features Intelligent control, high integration, flexible design, simple operation and easy maintenance
- Screen Size 10 Inch (in)
- Connectivity Type Industrial Ethernet / RS485 / Pneumatic Bus
Vacuum Flask Fully Automatic Metalworking Production Line Price And Quantity
- 25000 USD ($)/Set
- 1 Set
Vacuum Flask Fully Automatic Metalworking Production Line Product Specifications
- Industrial Heavy-Duty Steel Frame / Precision Stainless Steel & Alloy Components
- Fully Automatic
- 4.2 s/pc
- 3000 Millimeter (mm)
- Servo Motor & Pneumatic Hybrid Drive
- PLC Intelligent Central Control / HMI Touch Screen
- 8500 Kilograms (kg)
- 8 Meter (m)
- Industrial PLC Controller
- Three Phase
- Automatic metalworking, body forming, edge processing, and transfer for cups and kettles
- White, Grey and Black
- 380 Volt (v)
- Automated manufacturing of insulated cups, vacuum flasks, and kettles
- Industrial Ethernet / RS485 / Pneumatic Bus
- Photoelectric Sensor / Proximity Switch / Pressure Sensor
- 60000 Watt (w)
- 50 Hertz (HZ)
- 1450 Millimeter (mm)
- Floor-Standing Heavy Duty Modular Base
- 8300 Millimeter (mm)
- IP 54
- Yes
- 8300 x 1450 x 3000 mm
- 10 Inch (in)
- Intelligent control, high integration, flexible design, simple operation and easy maintenance
- 1 Year
- 5 Kilograms (kg)
- Manual and automatic with PLC interface
- 380 Liters
- -10C to +50C
- 68# Anti-wear Hydraulic Oil
- 75 dB(A)
- 10-20 mm/s (adjustable)
- 400 mm (can be tailored to requirements)
- Suitable for deep drawing, bending, forming, and other industrial operations
- Industrial Blue & Yellow (customizable)
- Two-hand push button operation, emergency stop button
- Approximately 5500 kg
- Heavy-duty welded steel structure
Vacuum Flask Fully Automatic Metalworking Production Line Trade Information
- Telegraphic Transfer (T/T)
- 1-5 Set Per Month
- 20 Days
- Contact us for information regarding our sample policy
- Standard export packaging with wooden case / iron frame packaging.
- Asia, Middle East, Africa
- All India
- Available upon request
Product Description

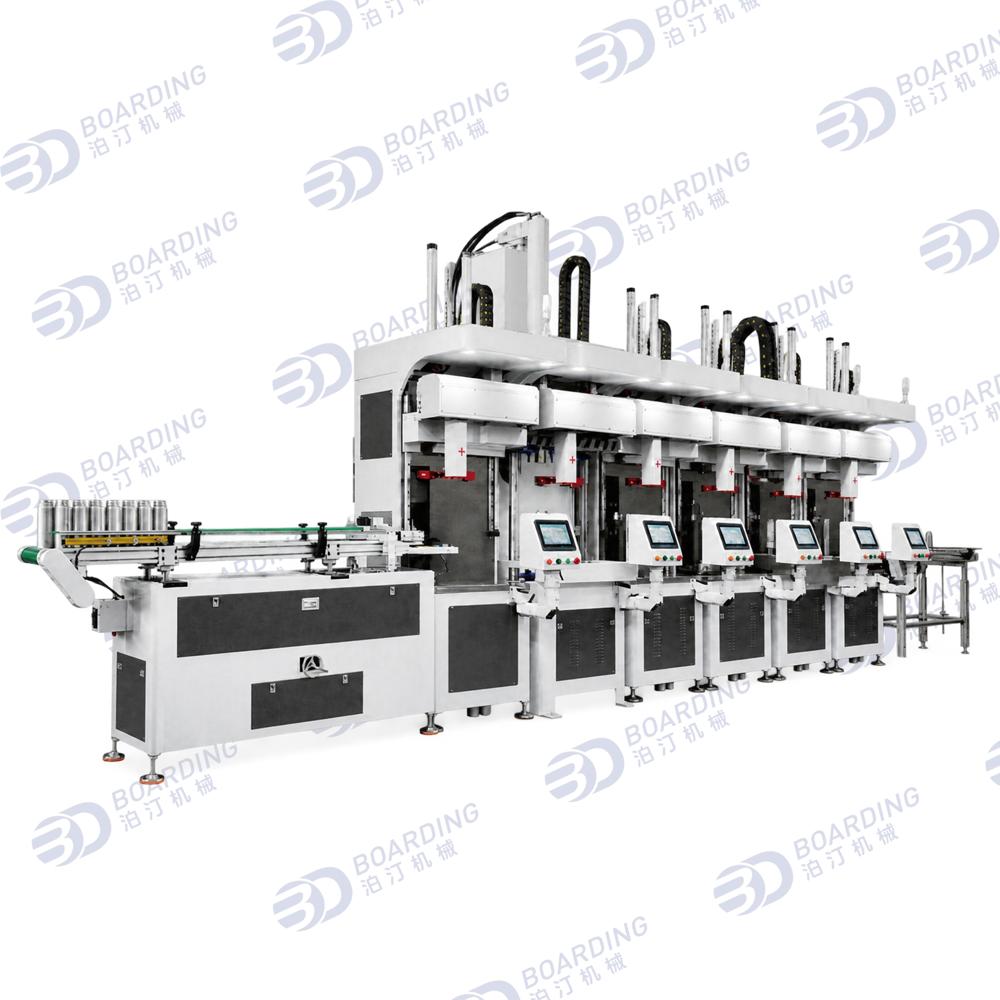

The Fully Automatic Metalworking Production Line is a highly integrated automated manufacturing solution engineered for the mass production of insulated cups, vacuum flasks, and kettles. Designed with advanced intelligent controls and flexible modular configurations, this production line delivers a fast output rate of 4.2 seconds per piece. Operating under 0.50.8 MPa working air pressure with a total rated power of 60 kW, it minimizes manual labor requirements while ensuring high product consistency and stable processing quality.
Key Features & Highlights:
-
Intelligent Automation Control: Significantly reduces manual operations and labor intensity through central automated control.
-
High System Integration: Delivers uniform performance, high repeatability, and consistent product quality.
-
High-Speed Efficiency: Reaches a production beat of 4.2 seconds per piece, ensuring efficient mass production.
-
Flexible Modular Architecture: Designed to adapt smoothly to various processing specifications and production needs.
Industrial Applications: Mainly applied in automated metalworking, body forming, edge processing, and assembly handling for stainless steel insulated cups, vacuum flasks, travel mugs, and metal kettles.
Frequently Asked Questions (FAQ):
-
Q: What is the cycle time and production speed of Model SZBD-ZK830?
-
A: The average cycle time is 4.2 seconds per piece.
-
Q: What is the overall power requirement for the entire line?
-
A: The total rated power is 60 kW for the complete line.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+

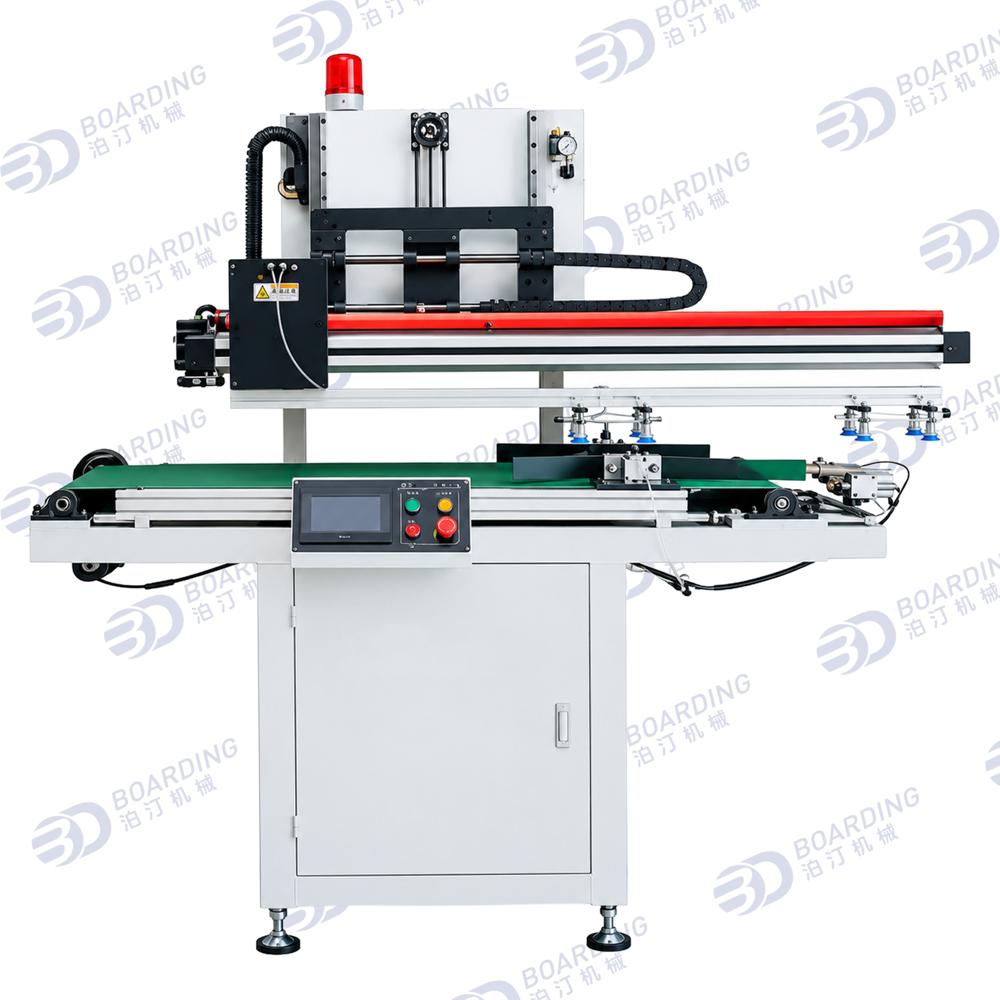

Other Products in 'Robot Hand' category
