Product Description

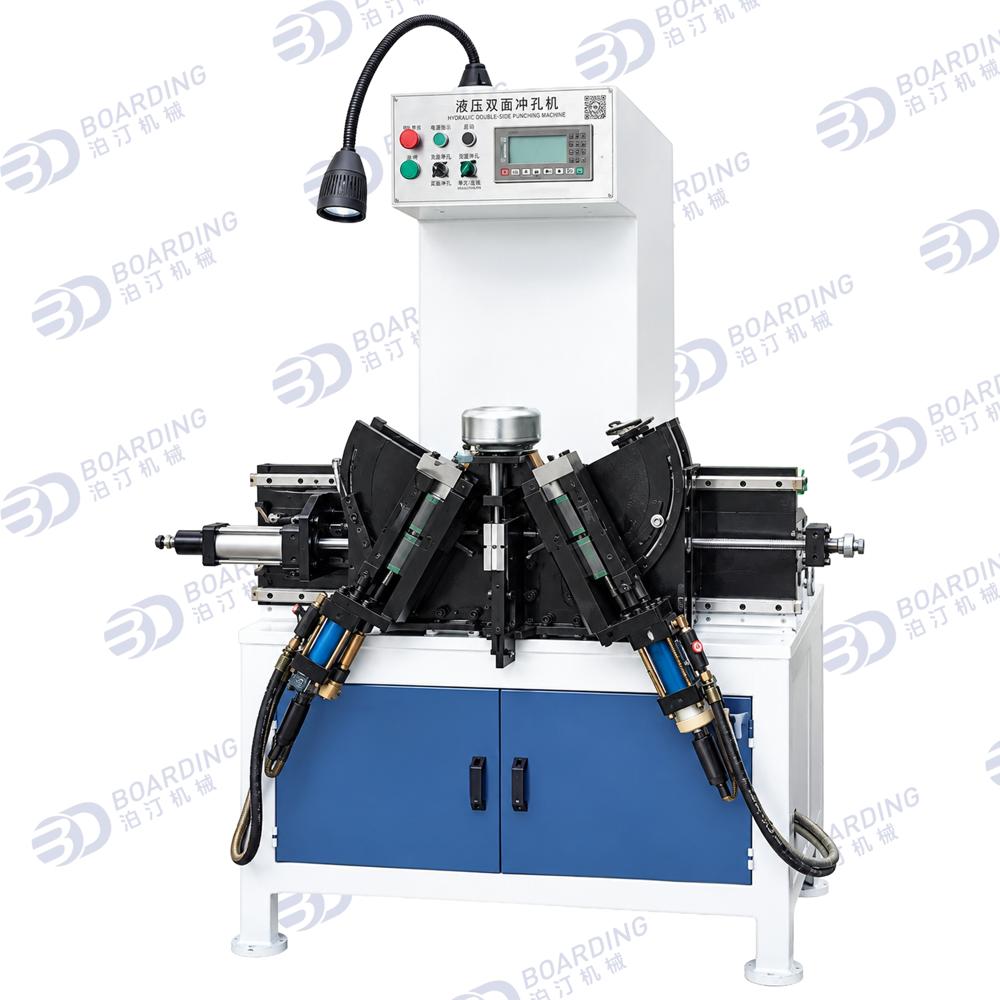

The Double Side Hole Punching Machine (Hole Punching for Kettle) is specifically designed for high-precision, synchronous dual-side hole punching on metal kettles, pots, and round containers. Driven by a powerful 5.5 kW main motor with double-pump hydraulic control, this machine efficiently pierces handle holes and rivet mounting points on both sides simultaneously. With adjustable hole spacing (45110 mm) and a robust 850 kg heavy-duty cabinet frame, it guarantees exceptional punching precision, smooth operation, and long service life.

Key Technical Features & Advantages

• Double Pump Hydraulic Control: Powered by a 5.5 kW motor controlled by a double pump system, delivering stable hydraulic pressure and energetic dual-cylinder action.

• Specialized for Kettle Manufacturing: Tailored fixture structure designed specifically to hold kettles and deep round vessels up to $\le 280\text{ mm}$ in height.

• Dual-Side Synchronous Piercing: Simultaneously punches holes on opposing sides, ensuring perfect alignment for kettle handles and bracket fittings.

• Flexible Hole Spacing Adjustment: Easily adjusts hole spacing between 45 mm and 110 mm to accommodate various handle hole specifications.

• Heavy-Duty Rigid Frame: Weighing approximately 850 kg with compact dimensions ($1300 \times 900 \times 1900\text{ mm}$), it minimizes vibration during continuous operation.

•


Industrial Applications

• Kettle handle hole and bracket rivet punching

• Stainless steel, aluminum, and metal teapot side-wall hole processing

• Dual-side punching for cookware pots, deep vessels, and cylindrical containers

•


Frequently Asked Questions (FAQ)

Q1: What is the benefit of the "double pump" control system on this machine?

A: The double pump system provides balanced and rapid hydraulic pressure distribution to both punching cylinders, ensuring simultaneous force and smooth cycle speed.
