Product Description

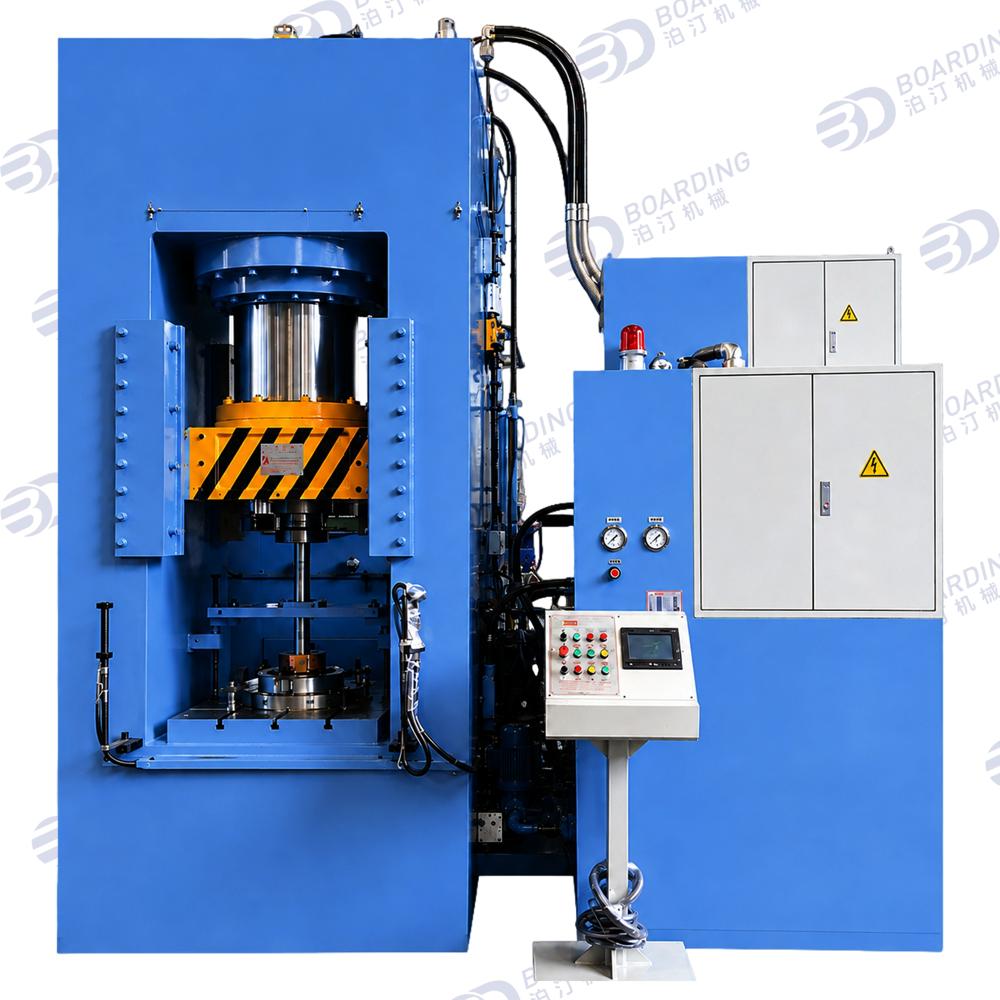

ZY34 Series Frame Hydraulic Press

The ZY34 Series Frame Hydraulic Press is a high-efficiency hydraulic press designed for pressing and forming applications in hardware, glass components, electrical appliances, metal stamping, watchbands, watch shells, plastic and rubber products, cookware, induction cookware, and other industrial applications. Its robust frame structure provides reliable support during high-pressure forming and pressing operations.

The machine is available in multiple models from 1000 kN to 20000 kN rated pressure, allowing customers to select a suitable configuration according to different production requirements.

High-Efficiency Hydraulic Pressing

The ZY34 Series Hydraulic Press is designed with a high-efficiency hydraulic system and low energy consumption. Its two-speed operating design provides fast movement during the unloaded stage and slower movement during pressing, helping improve production efficiency and operational performance.

The pressing speed varies according to the machine model, while the return speed and upward ram speed can reach 200 mm/s.

Robust Frame for Industrial Applications

The frame structure is designed to withstand the high forces generated during pressing and forming operations. The ZY34 Series is suitable for demanding industrial production environments involving metal forming, stamping, pressing and cold extrusion applications.

The series offers different rated pressure options, including 1000 kN, 2000 kN, 3000 kN, 5000 kN, 8000 kN, 10000 kN, 15000 kN and 20000 kN.

Adjustable Stroke and Operating Performance

The machine features a maximum stroke of 160 mm across the ZY34 series. The stroke position and operating speed can be adjusted according to production requirements, making the machine convenient for different pressing and forming operations.

The maximum working pressure ranges from 20 MPa to 26 MPa, depending on the machine model.

Wide Range of Industrial Applications

The ZY34 Series Frame Hydraulic Press can be used for a wide range of pressing and forming applications, including:

Hardware pressing and forming

Glass component processing

Electrical appliance components

Metal logo stamping

Watchband and watch shell production

Plastic and rubber products

Cookware and induction cookware

Cold extrusion and other metal forming applications

Manual and Semi-Automatic Operation

The ZY34 Series supports manual and semi-automatic operation modes, providing flexibility for different production environments and operating requirements.

The machine is available with different working table sizes according to the model, ranging from 420 420 mm to 1150 1150 mm.

FAQ's of ZY34 Series Frame Hydraulic Press:

Q: What is the ZY34 Series Frame Hydraulic Press used for?

A: The ZY34 Series is designed for pressing and forming applications such as hardware, glass components, electrical appliance components, metal stamping, watchbands, watch shells, plastic and rubber products, cookware and induction cookware.

Q: What rated pressure options are available for the ZY34 Series Hydraulic Press?

A: The ZY34 Series is available with rated pressures from 1000 kN to 20000 kN, including 1000 kN, 2000 kN, 3000 kN, 5000 kN, 8000 kN, 10000 kN, 15000 kN and 20000 kN models.

Q: What is the maximum stroke of the ZY34 Hydraulic Press?

A: The maximum stroke is 160 mm for the ZY34 Series models.

Q: What is the maximum working pressure of the ZY34 Series?

A: The maximum working pressure varies by model and ranges from 20 MPa to 26 MPa.

Q: What are the operating modes of the ZY34 Series Hydraulic Press?

A: The ZY34 Series supports manual and semi-automatic operation modes, providing flexibility for different pressing and forming applications.

Q: What is the return speed of the ZY34 Hydraulic Press?

A: The return speed is 200 mm/s for the ZY34 Series models.

Q: What is the motor power range of the ZY34 Series?

A: The motor power varies according to the model, ranging from 5.5 kW to 45 kW.

Q: Can the ZY34 Series be used for cold extrusion?

A: Yes. The ZY34 Series is identified as a Frame Cold Extrusion Series and is suitable for cold extrusion and other pressing and metal forming applications, depending on the specific production requirements.
