Product Description

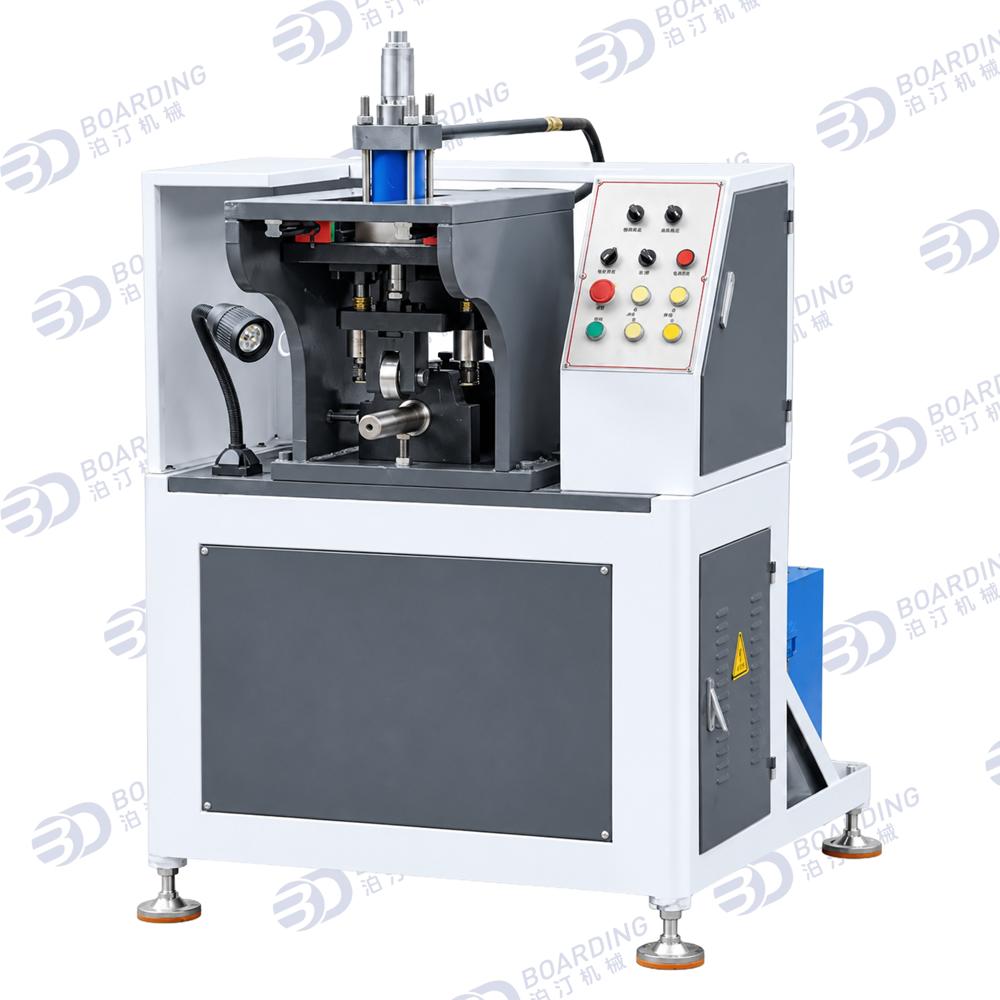

The Pipe Ends Flatten Machineis an automated metalworking unit designed to flatten the welding seam at pipe ends. Adopting a vertical structure design and hydraulic control system (0.30.4 MPa), it processes pipe diameters from 30 mm to 150 mm, pipe lengths from 80 mm to 350 mm, and wall thicknesses of 0.30.8 mm. Powered by a 2.2 kW motor, it operates efficiently with a high production capacity of 8,00010,000 pieces per 10 hours, ensuring smooth seam removal and easy operation for high-volume cup and flask manufacturing.

Key Features & Highlights:

• Vertical Structure Design: Compact and stable vertical arrangement for convenient loading and space-saving.

• Automatic Operation: Streamlined automated seam flattening cycle for high consistency.

• Easy Operation: Simple control panel layout, reducing learning curve and labor requirements.

• High Production Capacity: Output reaches 8,00010,000 pieces per 10-hour shift.

Industrial Applications: Mainly applied in flattening welding seams on pipe ends for stainless steel thermos cups, vacuum flasks, travel mugs, and cylindrical metal containers.

Frequently Asked Questions (FAQ):

• Q: What pipe dimensions can Model SZBD-04-FLK process?

• A: It handles pipe diameters of 30150 mm, pipe lengths of 80350 mm, and wall thicknesses of 0.30.8 mm.

• Q: What is the power and pressure requirement for this machine?

• A: It operates on a rated power of 2.2 kW and hydraulic pressure of 0.30.4 MPa.
