Product Description

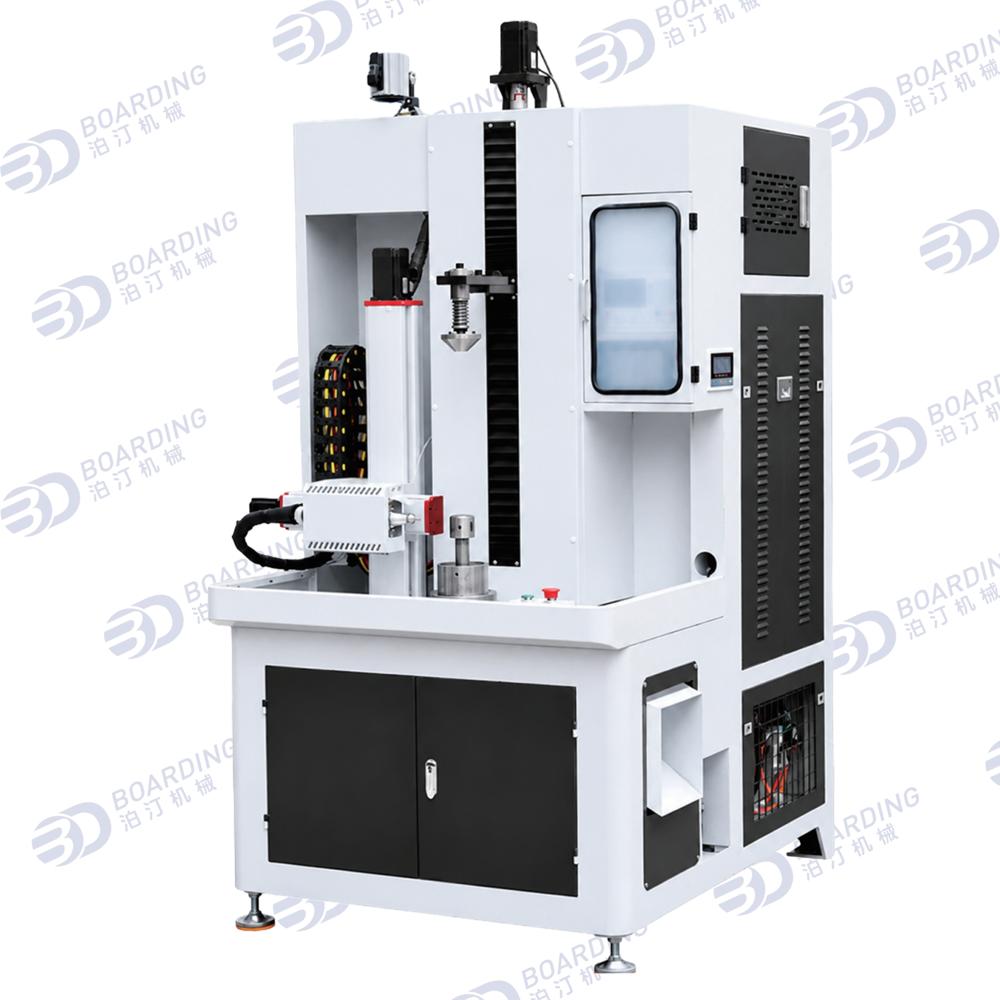

The Laser Pipe Dividing Machine is an advanced automated laser cutting system engineered for separating bulged pipes into individual cup bodies. Powered by a 1.0 kW laser source and controlled by a high-precision servo system, it processes pipe diameters from 30 mm to 100 mm, heights from 50 mm to 350 mm, and wall thicknesses of 0.250.8 mm. Delivering burr-free precision cutting with zero length error, built-in dust collection, and minimal maintenance, it eliminates the need for subsequent trimming machines and achieves an impressive daily production output of 4,0006,000 pieces per 8 hours.

Key Features & Highlights:

• Servo Precision Control: Equipped with a high-accuracy servo control system ensuring zero error length cutting during cup separation.

• Burr-Free Laser Cutting: Delivers clean, smooth cuts without burrs, eliminating the need for a separate trimming machine.

• Integrated Dust Collector: Integrated dust collection system keeps the working environment clean and safe.

• High Efficiency & Low Maintenance: Maintenance-free laser operation with a high production capacity of 4,0006,000 pieces per 8-hour shift.

Industrial Applications: Specifically designed for precision cup separation and pipe dividing following water bulging in the manufacturing of stainless steel thermos cups, vacuum flasks, and travel mugs.

Frequently Asked Questions (FAQ):

• Q: What pipe sizes are supported by Model SZBD-06-02-FLK?

• A: It handles pipe diameters of 30100 mm, working heights of 50350 mm, and wall thicknesses of 0.250.8 mm.

• Q: What is the total power requirement for this laser machine?

• A: Total power is 6.55 kW, which includes a 1.0 kW laser source.
