Product Details:
- Drive Servo Motor & Hydraulic Drive
- WorkingSpeed Variable-frequency speed adjustment
- Frequency 50 Hertz (HZ)
- Cooling System N/A
- Noise Level 75 db
- Accuracy 0.02 mm
- Operating Temperature 0 - 45 Celsius (oC)
Cookware Servo Trimming Machine Price And Quantity
- 13000 USD ($)/Set
- 1 Set
Cookware Servo Trimming Machine Product Specifications
- White and Blue
- 1 Year
- N/A
- 50 Hertz (HZ)
- 6-10 mpa
- 1500 x 1000 x 1800 Millimeter (mm)
- Electricity
- Variable-frequency speed adjustment
- Servo Motor & Hydraulic Drive
- 0.02 mm
- Metal Cookware & Container Edge Trimming
- 75 db
- 0 - 45 Celsius (oC)
- Other
- Other
- Semi Automatic
- 380 Volt (v)
- 4 kw
- Painted
- Servo Trimming Machine
- 4000 Watt (w)
- Automatic Lubrication
- PLC
- High Precision, Servo Driven, Hydraulic Clamping, Screw Rod Adjustment
- Heavy-Duty Vertical Cabinet Frame
- 200-400 Pcs/hr
- China
- 850 Kilograms (kg)
- Adjustable Mechanical Gripper
- 3 (X, Y, Z)
- 0.05 mm
- CE Certified
- Touchscreen & Button Panel
- 85% RH (Non-condensing)
- Industrial Grey with Blue Accents
- Natural Air Cooling
- <65 dB
- 700 mm (X Axis), 500 mm (Y Axis), 250 mm (Z Axis)
- As low as 5 seconds per operation
Cookware Servo Trimming Machine Trade Information
- Telegraphic Transfer (T/T)
- 1-5 Set Per Month
- 45 Days
- Contact us for information regarding our sample policy
- Standard export packaging with wooden case / iron frame packaging.
- Asia, Middle East, Africa
- All India
- Available upon request
Product Description

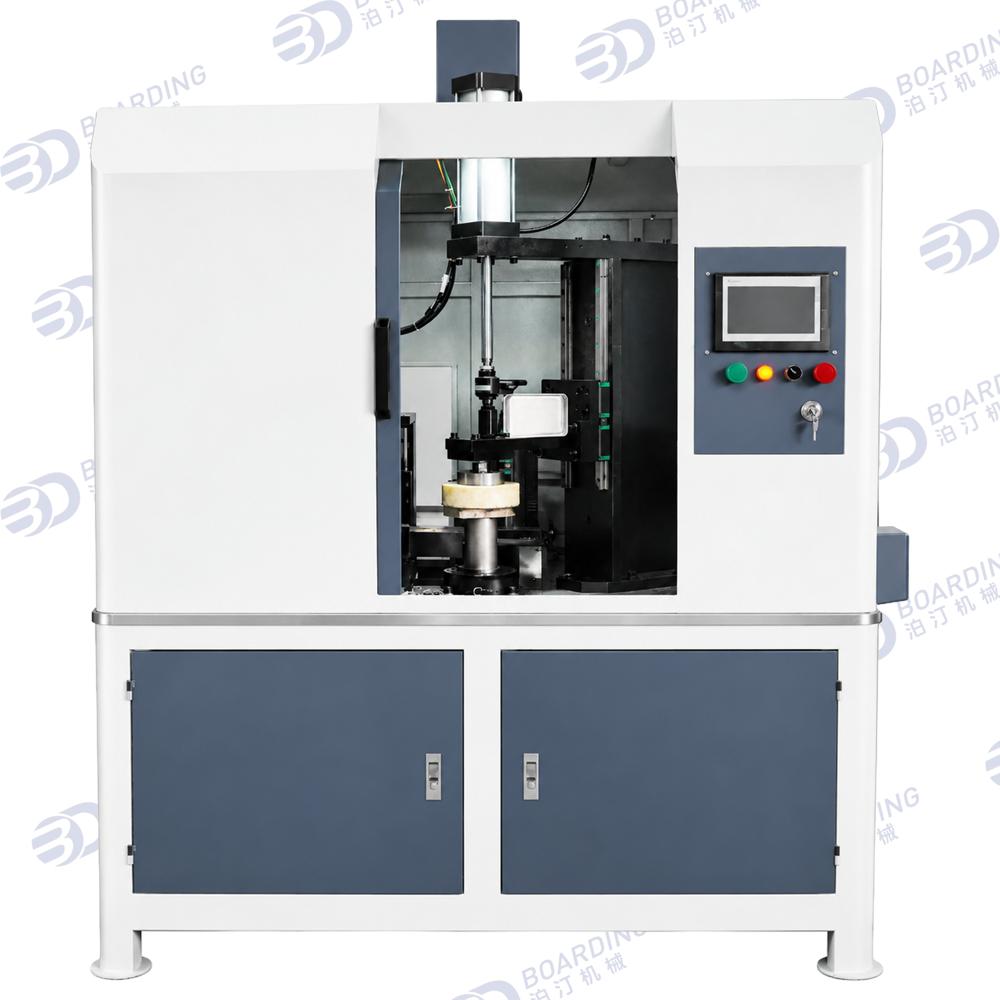

The Servo Trimming Machine is engineered for fast, smooth, and high-precision edge trimming of metal cookware, stainless steel pots, pans, and round containers. Combining a high-torque servo motor drive with an integrated hydraulic clamp, industrial programmable PLC, and HMI text control, this unit offers exceptionally tight tolerance control and clean cutting profiles. Its screw rod sizing mechanism allows quick height adjustments, making it an ideal choice for efficient batch production.
Key Technical Features & Advantages
-
Servo Motor & Hydraulic Integration: Dynamic servo positioning combined with smooth hydraulic clamping force delivers precise, chatter-free edge shearing.
-
Programmable PLC & HMI Control: User-friendly text interface and PLC controller enable flexible cycle configuration and consistent repeatability.
-
Screw Rod Size & Height Adjustment: Features an easy-to-use screw rod layout for straightforward adjustment across varying product dimensions.
-
Variable-Frequency Speed Tuning: Infinite speed control ensures ideal tool rotation for different material hardnesses and sheet gauges.
-
Rigid Machine Frame: Compact structural enclosure (1500 1000 1800 mm) absorbs operational vibration and maximizes tool lifespan.
-
Industrial Applications
-
Stainless steel, aluminum, and brass cookware rim trimming and deburring
-
Metal pot, pan, and basin edge finishing
-
Precision round metal shell and vessel edge processing
-
Frequently Asked Questions (FAQ)
Q1: What are the main benefits of using a Servo drive on a trimming machine?
A: Servo motor drive provides higher positioning accuracy, faster response times, and smoother speed control, resulting in superior edge cutting quality.
Q2: What workpiece sizes can this machine accommodate?
A: It processes workpiece diameters up to $\le \phi 400\text{ mm}$, heights up to $\le 150\text{ mm}$, and sheet thicknesses from 0.8 mm to 5 mm.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
