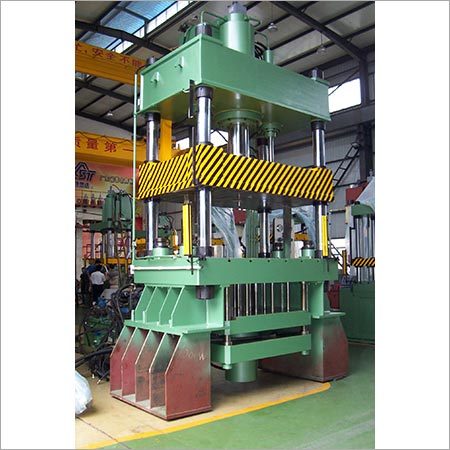

Wide Bed Four Column Hydraulic Press
Wide Bed Four Column Hydraulic Press Price And Quantity
- 25000 USD ($)/Set
- 1 Set
Wide Bed Four Column Hydraulic Press Trade Information
- 1-5 Set Per Month
- 7-15 Days
- wooden Box, Iron Box.
- All India
Product Description
Since our inception in year 2003, we have been engaged in manufacturing and exporting a fine range of Wide Bed Four Column Hydraulic Press. At ultra-modern production unit, this press is manufactured using quality assured components by our skilled professionals with cutting-edge technique. Offered press is well cherished among clients due to its longer service life, easy to operate, low power consumption and defect free properties. This press is suitable for making sheets from hard materials by applied compression force. Apart from this, clients can purchase offered Wide Bed Four Column Hydraulic Press from us in various specification.

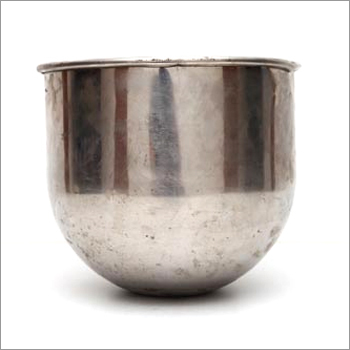

This series press has the blank-holding structure,which is good for deep drawing,flaring of metal sheets,especially good for the deep drawing,forming of stainless steel and aluminum products. The press is also available for the cold extruding of metal components.
Characters:.
This press is with two kinds of deep drawing modes:quick and slow.It has the character: high-efficiency,lower energy consumption,convenient operation and much safer,etc.
Special components:
- Vickers Hydraulic valves and pump
- (Optional) continuously pressure adjusting for blank-holding cylinder
- Taking use of the imported electric parts,PLC,etc.
Technical specification
| Item | UNIT | YZ28G-500 | YZ28G-400W | YZ28G-600W1 | YZ28G-600W2 | YZ28G-800 | YZ28G-1000W | YZ28G-1300 | |
| Norminal capacity | kN | 3000 | 2500 | 3500 | 3500 | 5000 | 6500 | 8000 | |
| Norminal working pressure of hydrauic system | MPa | 20 | 20 | 20.5 | 20 | 20 | 20 | 20 | |
| Return capacity | kN | 220 | 140 | 200 | 200 | 200 | 150 | 200 | |
| Cusion cylinder capacity | kN | 2000 | 1500 | 2500 | 2500 | 3000 | 3500 | 5000 | |
| Cusion cylinder max.pressure | MPa | 25 | 25 | 25 | 25 | 26 | 25 | 25 | |
| Ejection capacity | kN | 50 | 30 | 40 | 40 | 150 | 150 | 40 | |
| Max.stroke of cusion piston | mm | 300 | 300 | 300 | 300 | 350 | 340 | 350 | |
| Max.stroke of ejection | mm | 220 | 220 | 250 | 250 | 250 | 200 | 250 | |
| Max.stroke of ram | mm | 600 | 750 | 650 | 650 | 650 | 850 | 750 | |
| Open height | Max. | mm | 1117 | 1107 | 1200 | 1200 | 1200 | 1200 | 1250 |
| Min. | mm | 517 | 517 | 550 | 550 | 550 | 550 | 500 | |
| Speed of ram | Downward Without loading | mm/s | 180 | 115 | 125 | 135 | 125 | 135 | 130 |
| Pressing | mm/s | 14\38 | 11\27 | 8\20 | 25\15 | 8\20 | 8\20 | 6\20 | |
| Return | mm/s | 185 | 190 | 110 | 195 | 180 | 145 | 160 | |
| Speed of cusion piston | Upward | mm/s | 70 | 55 | 65 | 55 | 60 | 65 | 73 |
| Downward | mm/s | downward with ram | downward with ram | downward with ram | downward with ram | downward with ram | downward with ram | downward with ram | |
| Motor power | Kw | 55 | 30 | 55 | 55 | 45 | 55 | 55+7.5 | |
| Real working table size | mm | 1100*1100 | 1300*1200 | 1800*1400 | 1200*1200 | 1300*1200 | 1650*1300 | 2000*1500 | |
| Overall size | mm | 1580*1460*4600 | 2620*2330*4290 | 2060*1300*5100 | 2900*2100*4550 | 2615*1200*5345 | 3060*1300*4700 | 2800*1700*6800 | |
