Name: Hydraulic Stamping Press
Brand: SUZHOU BOARDING INDUSTRIAL CO. LTD.
Price: 200000 USD
Availability: InStock

Product Details:

WorkingSpeed 38 s.p.m.
Product Type Other
Technology Other
Power Source Other
Pressure Not Applicable PSI
Dimension (L*W*H) 1750 2700 3300 mm Millimeter (mm)
Color Green
Share Your Product:

200000 USD ($)/Unit

Get a Price/Quote

Request To Call Back Send Inquiry

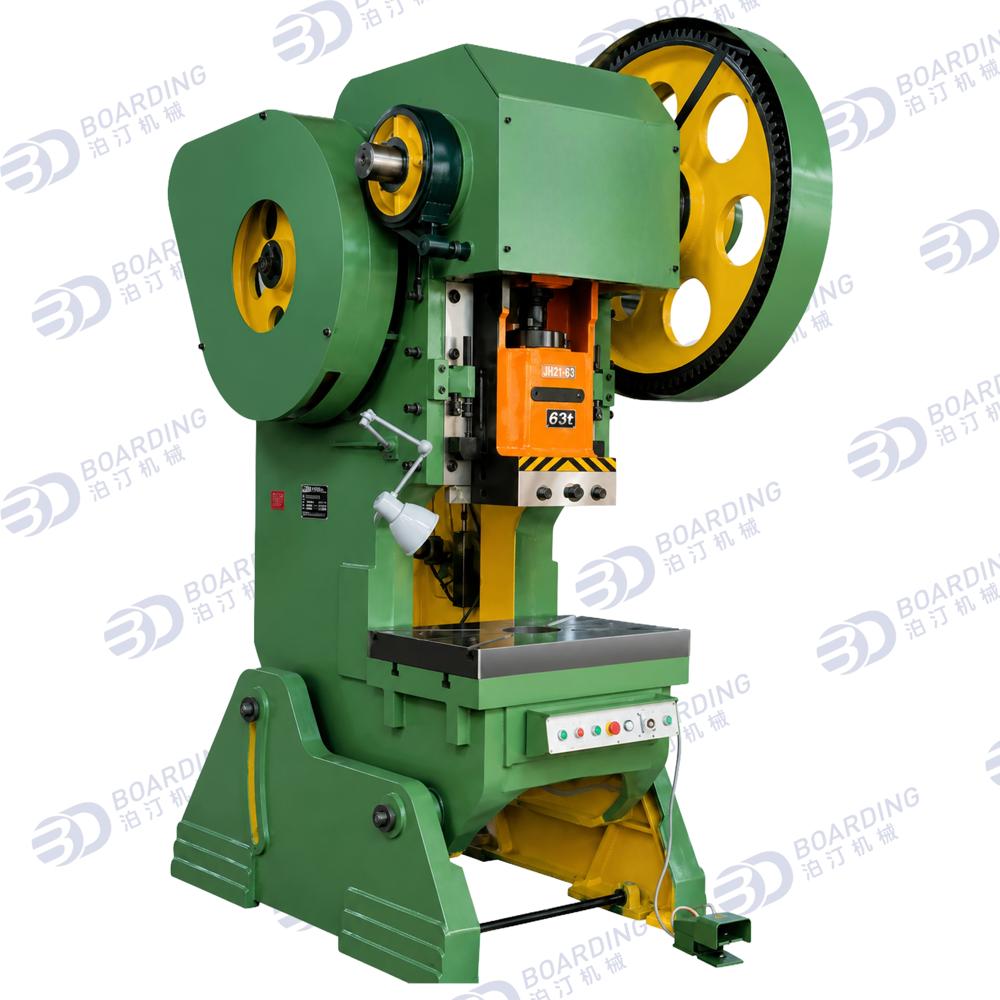

J23 Series Open Back Inclineable Press Price And Quantity

Price 200000 USD ($)/Unit
Minimum Order Quantity 1 Unit

J23 Series Open Back Inclineable Press Product Specifications

Product Type Other
Power Source Other
Technology Other
Dimension (L*W*H) 1750 2700 3300 mm Millimeter (mm)
Pressure Not Applicable PSI
WorkingSpeed 38 s.p.m.
Color Green

J23 Series Open Back Inclineable Press Trade Information

FOB Port Shanghai
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 1-5 Unit Per Month
Delivery Time 60 Days
Packaging Details Standard export packaging with wooden case / iron frame packaging
Main Export Market(s) Asia, Middle East, Africa
Main Domestic Market All India
Certifications Available upon request

Product Description

J23 Series Open Back Inclineable Press is a high-speed mechanical press designed for sheet metal stamping operations, including punching, blanking, bending, forming, and progressive stamping. The open-back inclinable structure allows finished parts and scrap to fall clear of the die, making it suitable for fast-cycle production.

Technical Parameters:

Nominal Capacity : 1250 kN

Stroke of Nominal Pressure : 10 mm

Stroke of Slide : 130 mm

Stroke Per Minute : 38 s.p.m.

Max. Shut Height : 380 mm

Shut Height Adjustment : 100 mm

Frame Gap : 380 mm

Bed Dimension (R-L) : 1080 mm

Bed Dimension (F-B) : 710 mm

Bed Dimension (Depth) : 100 mm

Bed Dimension (Mess Plate Dia.) : 250 mm

Slide Bottom Size (R-L) : 430 mm

Slide Bottom Size (F-B) : 370 mm

Shank Hole Diameter : 60 mm

Shank Hole Depth : 75 mm

Distance Between Columns : 610 mm

Gradient : 20

Overall Dimensions (R-L) : 1750 mm

Overall Dimensions (F-B) : 2700 mm

Overall Height : 3300 mm

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Hole Punching Machine' category

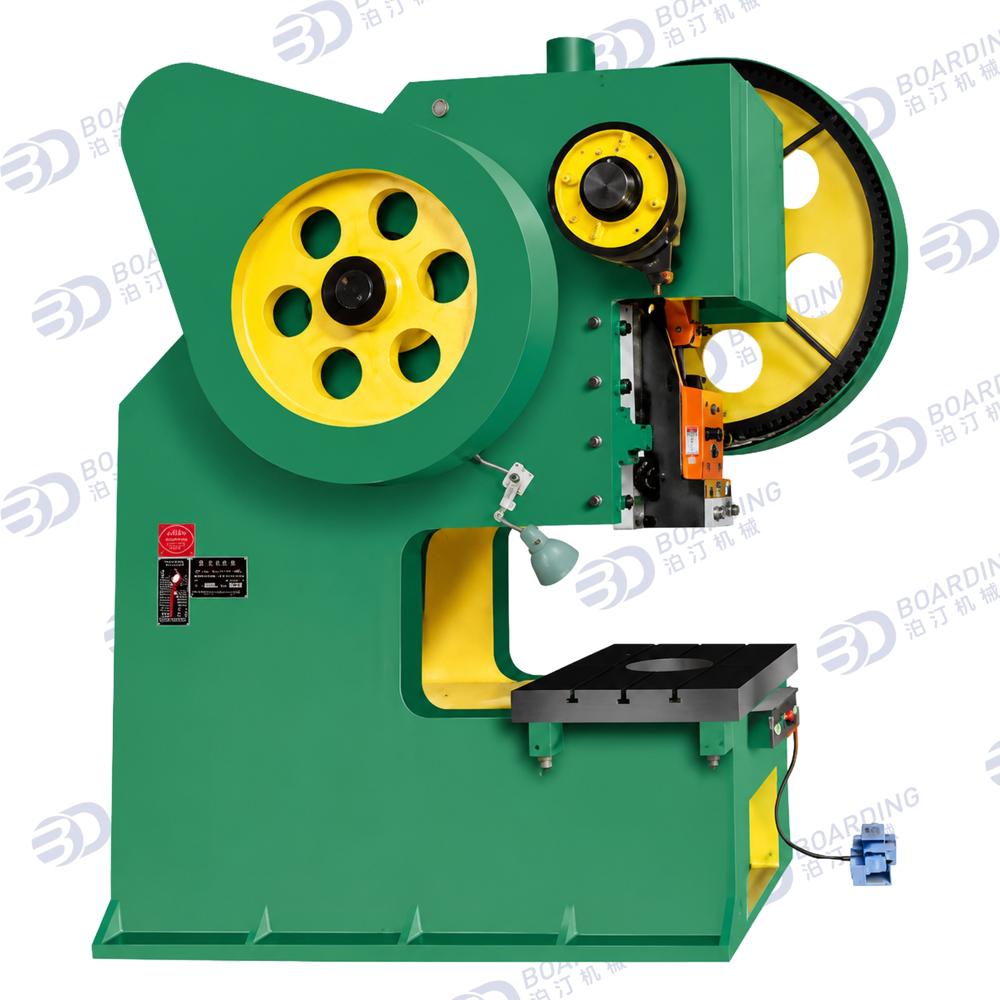

J21S Open Back Deep Throat Press Price : 12.0 USD ($)/Unit Minimum Order Quantity : 1
