Product Description

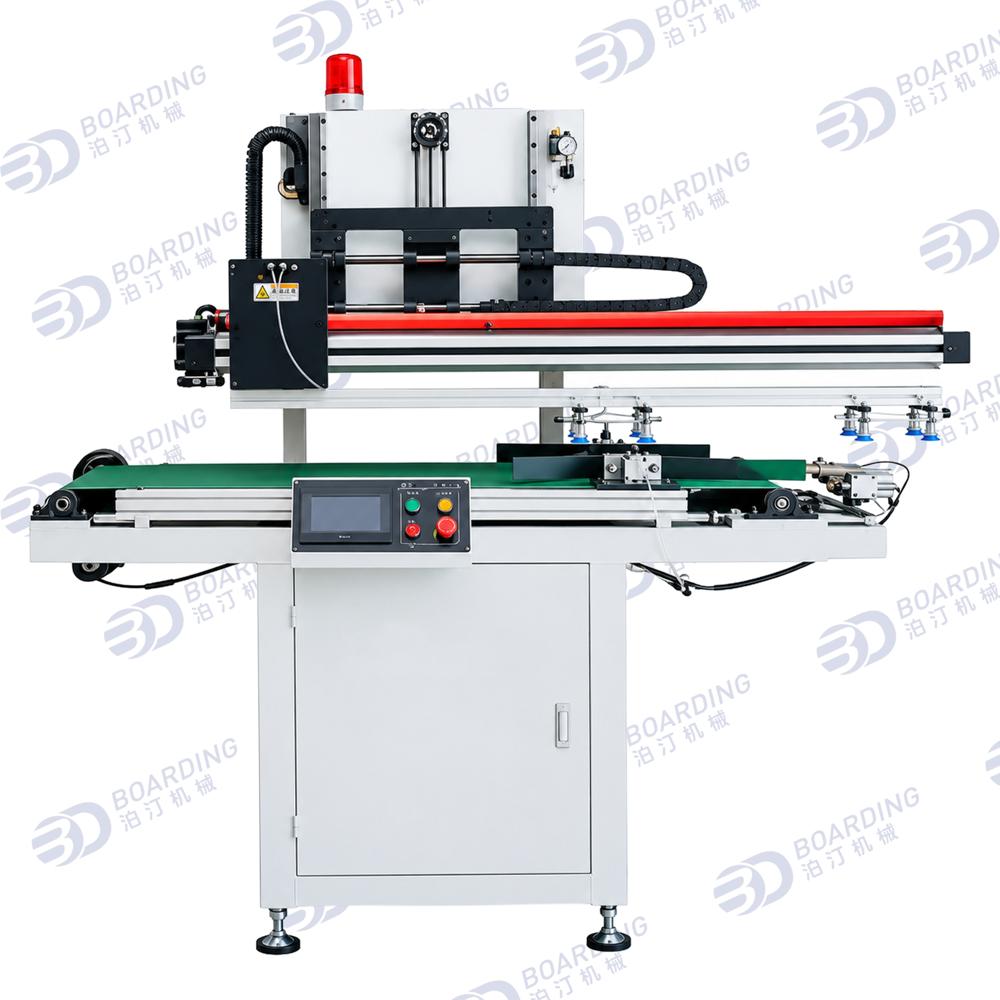

The 2 Axis Automatic Arm / Second-Process Manipulator is a high-efficiency 2-axis industrial automation manipulator engineered for second-process material transfer between stamping presses, punching machines, and deep drawing stations. Operating on 220V single-phase power with low power consumption (1.5 kW/H), it delivers reliable feeding accuracy of 0.08 mm and production speeds up to 260-400 pcs/h, making it ideal for automated multi-station stamping lines.

Key Features & Highlights:

• Precision 2-Axis Motion: Designed with a 1250 mm front-to-back stroke for fast, smooth transfer of workpieces between presses.

• Wide Range of Product Specs: Accommodates product sizes ranging from 50 mm to 900 mm (Minimum Spec: 50350 mm; Maximum Spec: 350900 mm).

• High Production Efficiency: Reaches speeds of 260400 pcs/h to boost stamping line throughput while reducing manual labor risks.

• Low Power Consumption: Consumes only 1.5 kW/H on a standard 220V power supply, reducing energy costs.

•


Industrial Applications: Widely applied in multi-station automated stamping lines, cookware production lines (pots, pans, lids), hardware pressing, home appliance panel stamping, and inter-press part transfer.

Frequently Asked Questions (FAQ):

• Q: What range of workpiece sizes can this 2-axis arm handle?

  • A: It covers a product size range from 50 mm up to 900 mm (min spec 50-350 mm, max spec 350-900 mm).

• Q: What is the primary function of a "second-process" manipulator?

  • A: It is specifically designed to automatically pick up semi-finished parts from one press and feed them into the next press or stamping station.
