Product Details:
- Usage & Applications External bottom, side body, and edge angle polishing for cookware and metalware
- Power Source Electric
- Finish Type Glossy, Semi-Gloss, Matte
- Form Heavy-Duty Frame / Station Type
- Power 21200 Watt (w)
- Accessories Bottom Polishing Head, Side Polishing Head, Edge Head, Oil Pump
- Polish Type Other
Cookware Three heads bottom, outside body and angle polishing machine Price And Quantity
- 40000 USD ($)/Set
- 1 Set
Cookware Three heads bottom, outside body and angle polishing machine Product Specifications
- Semi-Automatic
- 21200 Watt (w)
- Bottom Polishing Head, Side Polishing Head, Edge Head, Oil Pump
- 230 Millimeter (mm)
- Three Heads External Polishing Machine / Bottom, Body & Corner Polisher
- 380 Volt (v)
- External bottom, side body, and edge angle polishing for cookware and metalware
- Heavy Duty Steel Frame / Alloy Structural Components
- Glossy, Semi-Gloss, Matte
- Heavy-Duty Frame / Station Type
- 2800 Kilograms (kg)
- Electric
- Stainless Steel / Aluminum / Outer Metal Walls & Bottoms
- Blue
- Industrial Grade
- Yes
- 0.6 mpa
- 1 Year
- Opaque
- N/A
- 3 Pcs/min
- Other
- High-speed Performance for Mass Production
- 550 mm
- Robust Welded Construction
- 22 kW
- PLC with Touchscreen Interface
- 350 L
- 200 mm
- Overload Protection, Emergency Stop, Light Curtains
- 0.02 mm
- 1300 x 1000 mm
- Four Column Fast Fine Blanking
Cookware Three heads bottom, outside body and angle polishing machine Trade Information
- Telegraphic Transfer (T/T)
- 1-5 Set Per Month
- 20 Days
- Contact us for information regarding our sample policy
- Standard export packaging with wooden case / iron frame packaging.
- Asia, Middle East, Africa
- All India
- Available upon request
Product Description

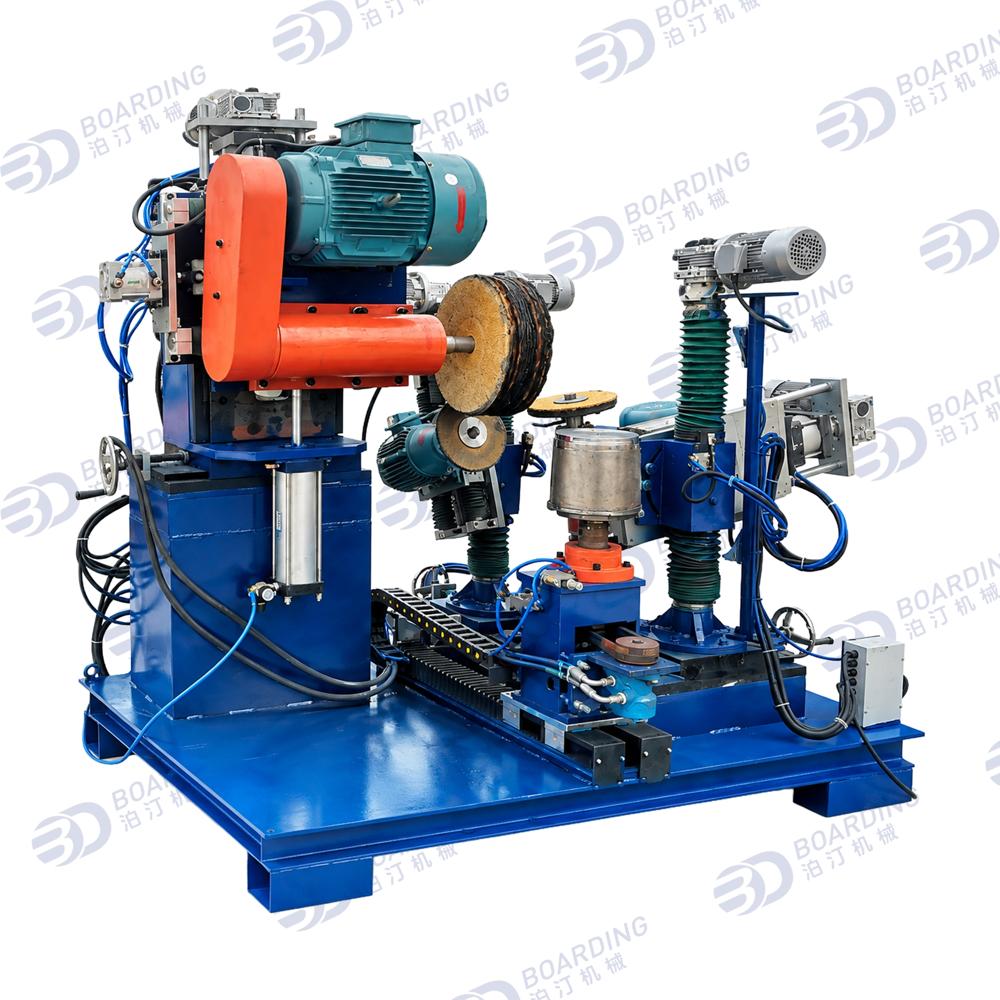

The Three Heads Bottom, Outside Body and Angle Polishing Machine is a highly versatile surface finishing machine designed for comprehensive external polishing of cylindrical metal containers. Equipped with three specialized polishing heads (11 kW bottom polishing, 4 kW body polishing, and 4 kW edge polishing) and a 2.2 kW hydraulic oil pump system, it completes bottom, side wall, and corner/edge polishing in a coordinated workflow for workpieces with diameters from 140 mm to 340 mm and heights up to 230 mm.
Key Features & Highlights:
-
3-Head Synchronized Polishing: Integrates three dedicated polishing motors11 kW (2200 rpm) for the bottom, 4 kW (2200 rpm) for the side body, and 4 kW (2900 rpm) for the edge/corner.
-
Hydraulic System Support: Driven by a built-in 2.2 kW oil pump motor to provide steady hydraulic pressure during polishing operations.
-
Wide Workpiece Adaptability: Handles workpiece diameters ranging from 140 mm to 340 mm and maximum heights up to 230 mm.
-
High Efficiency & Gloss: Delivers uniform external surface mirror polishing on pots, pans, kettle bottoms, and cookware walls.
Industrial Applications: Widely applied for external surface polishing (bottom, outer wall, and edge/R-angle) of stainless steel cookware, aluminum pots, stockpots, frying pans, and metal containers.
Frequently Asked Questions (FAQ):
-
Q: What are the three polishing heads used for on this machine?
-
A: The three heads are specifically allocated for polishing the container bottom (11 kW), outer side body (4 kW), and corner/edge (4 kW) respectively.
-
Q: What size range of workpieces can be polished?
-
A: It processes workpieces with a diameter range of 140 mm to 340 mm and a maximum height of 230 mm.
