Product Details:
- Machine Type Mechanical Press
- WorkingSpeed 35 s.p.m.
- Motor Power 18500W Watt (W)
- Power Rating 18.5 kW
- Drive Mechanical Drive
- Model No J21S-165A
- Technology Other
12.0 USD ($)/Unit
X

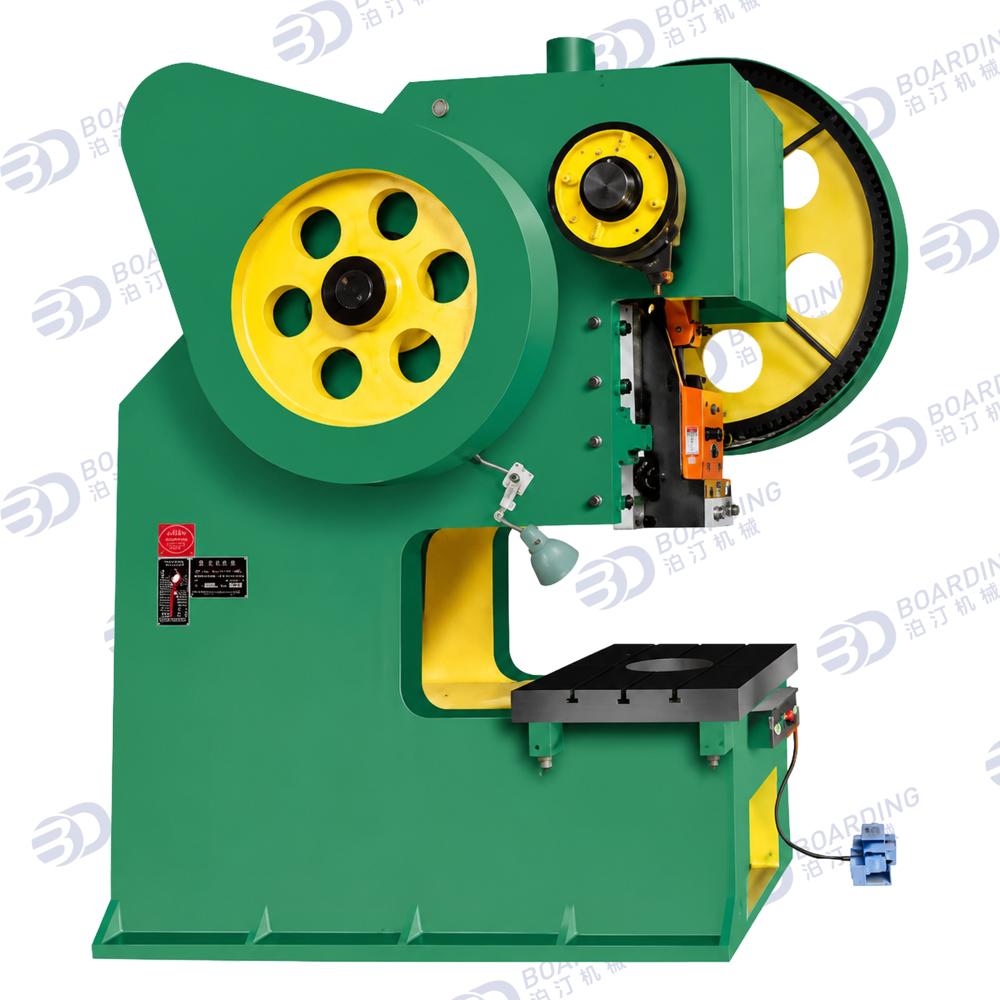

J21S Open Back Deep Throat Press Price And Quantity
- 1 Unit
- 12.0 USD ($)/Unit
J21S Open Back Deep Throat Press Product Specifications
- 35 s.p.m.
- 18500W Watt (W)
- 18.5 kW
- Mechanical Drive
- J21S-165A
- 18500W Watt (w)
- 20800 Kilograms (kg)
- Green
- Not Applicable PSI
- Semi Automatic
- Punching, Blanking, Cutting, Bending, Forming, Drawing and Stretching
- Other
- Other
- Mechanical Press
J21S Open Back Deep Throat Press Trade Information
- Shanghai
- Telegraphic Transfer (T/T)
- 1-3 Unit Per Month
- 60 Days
- Yes
- Standard export packaging with wooden case / iron frame packaging
- Asia, Middle East, Africa
- All India
- Available upon request
Product Description
J21S Open Back Deep Throat Press is a mechanical sheet metal stamping press designed for punching, blanking, cutting, bending, forming, drawing, and stretching operations. The deep-throat structure provides extended working space for larger or wider sheet metal parts. It is suitable for electrical appliances, instruments, switches, automotive components, and general sheet metal processing.J21S Open Back Deep Throat Press is a mechanical sheet metal stamping press designed for punching, blanking, cutting, bending, forming, drawing, and stretching operations. The deep-throat structure provides extended working space for larger or wider sheet metal parts. It is suitable for electrical appliances, instruments, switches, automotive components, and general sheet metal processing.Technical Parameters:
Nominal Capacity : 1650 kN
Stroke of Slide : 130 mm
Stroke per Minute : 35 s.p.m.
Max. Shut Height : 400 mm
Shut Height Adjustment : 100 mm
Throat Depth : 900 mm
Worktable Size (R-L) : 1070 mm
Worktable Size (F-B) : 740 mm
Worktable Hole Diameter : 180 mm
Slide Bottom Size (R-L) : 480 mm
Slide Bottom Size (F-B) : 400 mm
Shank Hole Diameter : 70 mm
Shank Hole Depth : 100 mm
Motor Power : 18.5 kW
Weight : 20800 kg
Overall Dimensions : According to actual machine configuration
