Product Description

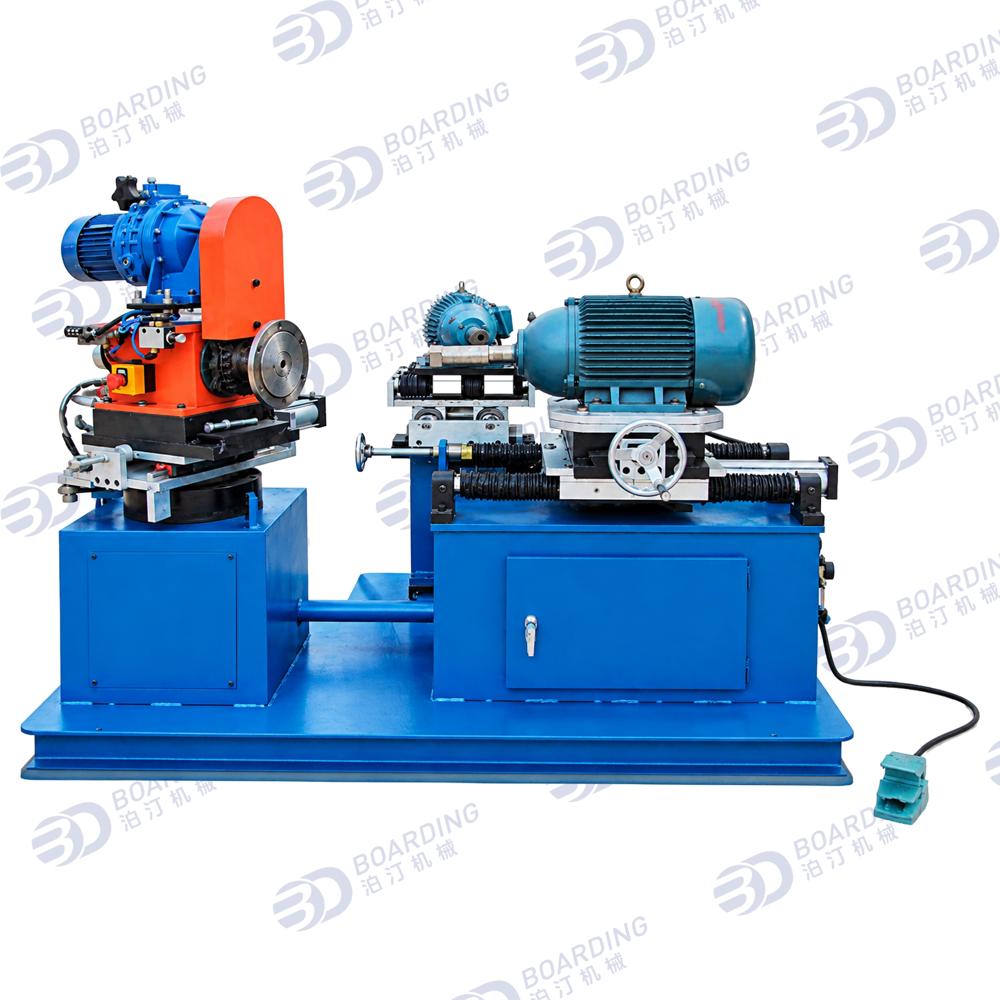

The Two Heads Inside Body, Edge Polishing Machine is an efficient surface finishing unit designed for combined internal wall and edge polishing of round metal containers. Driven by a 7.5 kW inside body polishing motor and a 3 kW edge polishing motor, it accommodates workpieces up to 400 mm in diameter and 250 mm in height. Operating at a main spindle speed of 2900 rpm with adjustable workpiece rotation (28140 rpm), it ensures comprehensive internal polishing and smooth edge finishing in a streamlined workflow.

Key Features & Highlights:

• Dual Polishing Functionality: Combines independent motors for internal body polishing (7.5 kW) and edge finishing (3 kW).

• High Spindle Speed: Operates at a polishing wheel spindle speed of 2900 rpm for optimal surface smooth and gloss.

• Variable Workpiece Speed: Features adjustable workpiece rotation speeds from 28 to 140 rpm to match diverse processing conditions.

• Generous Workpiece & Wheel Size: Processes workpieces up to 400 mm in diameter and 250 mm in height, using polishing wheels up to 250 mm x 150 mm.

Industrial Applications: Widely applied for internal wall polishing, edge deburring, and high-gloss finishing of stainless steel cookware, soup pots, stockpots, pans, kettles, and cylindrical metal hardware containers.

Frequently Asked Questions (FAQ):

• Q: What is the maximum workpiece size this double-head inside polishing machine can process?

• A: It can process workpieces with maximum dimensions of 400 mm in diameter and 250 mm in height.

• Q: What are the motor power ratings for Model DHNP-350?

• A: It features a 7.5 kW motor for inside body polishing and a 3 kW motor for edge polishing.
