Product Description

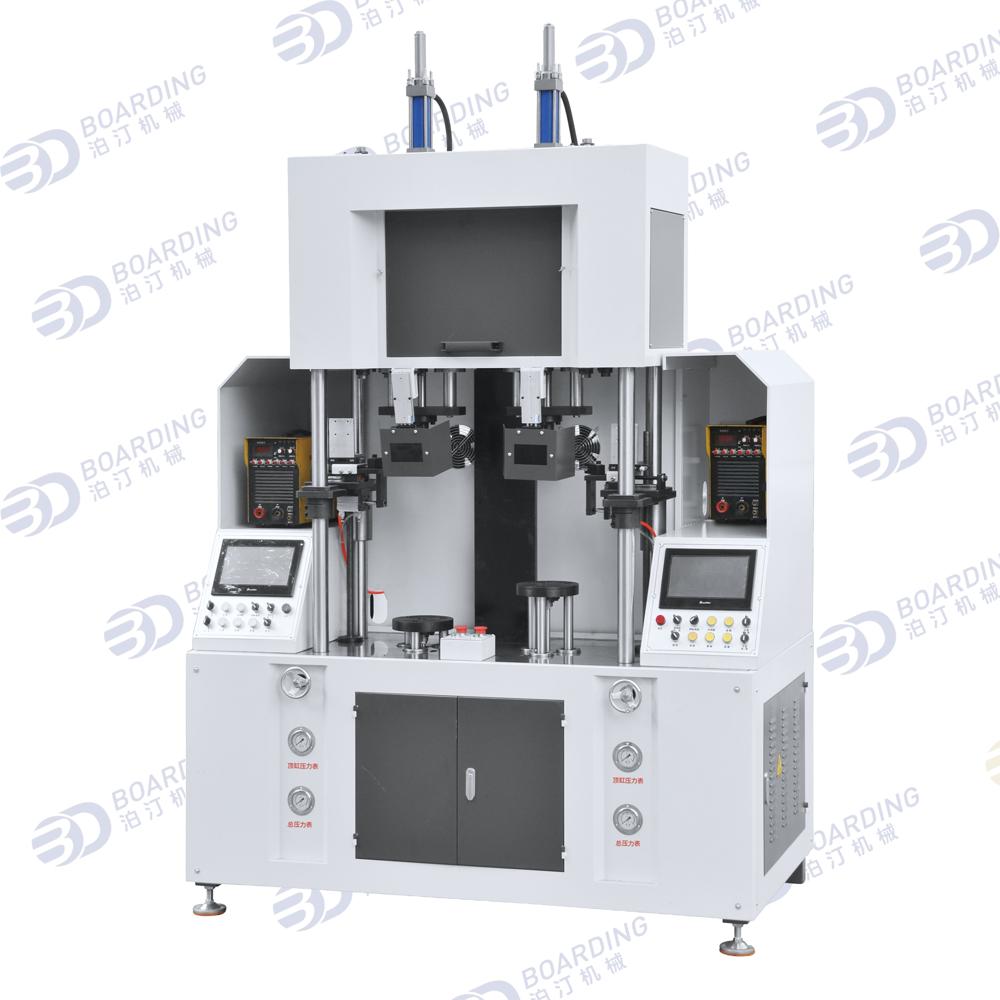

The Double Station Inner Support Straight Welding Machine is an advanced automated welding solution engineered specifically for the mouth welding of vacuum bottles. Equipped with a PLC and touch screen man-machine interface, double station worktable, and an effective internal brace system, this machine ensures high welding stability, flexible station operation, and high output for metal flask manufacturing.

Key Machinery Features:

• PLC + Touch Screen Control: Features intuitive control via a PLC system integrated with a touch screen man-machine interface for smooth operation.

• High Degree of Automation: Combines manual loading/unloading with automatic welding execution for maximal efficiency.

• Double Station Operational Worktable: Dual-station design allows flexible alternating operation (or single-station operation) with quick-change, easy-to-install fixtures.

• Effective Internal Brace Welding: Guarantees effective internal brace welding and stable quality even when product diameter sizes fluctuate.

• Precision Spindle Drive: Driven by a stepper motor and reducer for smooth speed regulation and clean, precise welding results.

Industrial Applications:

• Mouth welding for stainless steel vacuum bottles, flasks, and thermal containers

• Automated straight seam internal support welding for cylindrical metal bodies

Technical Sections:

• Smart Control & Automation: Utilizes PLC and motor controller units to precise pneumatic pressure between 0.4 and 0.8 MPa, offering seamless parameter adjustment through dual touch panels.

• Structure & Capacity: Features a compact footprint (1600 x 700 x 2250 mm) weighing 780 kg, accommodating pipe diameters from 30 to 160 mm and achieving a production capacity of 4,0007,000 pcs per 10-hour shift.

•


Frequently Asked Questions (FAQ):

• Q: What is the main application of this machine?

• A: It is primarily used for the mouth welding of vacuum bottles.

• Q: What range of bottle diameters can this machine accommodate?

• A: It supports pipe diameters ranging from 30 mm to 160 mm.
