Product Details:
- Polish Type Other
- Usage & Applications Bottom R-angle polishing and top edge finishing for pots, pans, and metal containers
- Finish Type Glossy, Semi-Gloss, Matte
- Application Areas Industrial
- Form Heavy-Duty Cabinet Frame / Dual Station
- Accessories R-angle Polishing Wheel, Edge Polishing Wheel, Workpiece Fixture
- Grade Standard Industrial Grade
External R bottom and edge polishing machine Price And Quantity
- 15000 USD ($)/Set
- 1 Set
External R bottom and edge polishing machine Product Specifications
- Stainless Steel / Aluminum / Metal Outer Edges & Bottom R-Angles
- Heavy Duty Steel Frame / Alloy Structural Components
- External R Bottom and Edge Polishing Machine
- 12050 Watt (w)
- 150 Millimeter (mm)
- Industrial
- 2200 Kilograms (kg)
- Glossy, Semi-Gloss, Matte
- Opaque
- Industrial Grade
- Semi-Automatic
- Other
- R-angle Polishing Wheel, Edge Polishing Wheel, Workpiece Fixture
- Bottom R-angle polishing and top edge finishing for pots, pans, and metal containers
- Blue
- 380 Volt (v)
- 2 Pcs/min
- Heavy-Duty Cabinet Frame / Dual Station
- 1 Year
- N/A
- 0.6 mpa
- Yes
- Manual & Automatic Compatible
- Hydraulic
- Protective Enclosures, Overload Protection
- High Precision, CNC Controlled
- G-code, Customizable Programs
- 0.05 mm
- Available
- Touch Screen HMI
- On-site Installation & Training Available
- Integrated Water Cooling
- Up to 5 mm
- Auto Lubrication
- USB / LAN Supported
- 4-6 min per Piece (Depending on Complexity)
- <75 dB (Operational)
- 60 mm
External R bottom and edge polishing machine Trade Information
- Telegraphic Transfer (T/T)
- 1-5 Set Per Month
- 20 Days
- Contact us for information regarding our sample policy
- Standard export packaging with wooden case / iron frame packaging.
- Asia, Middle East, Africa
- All India
- Available upon request
Product Description

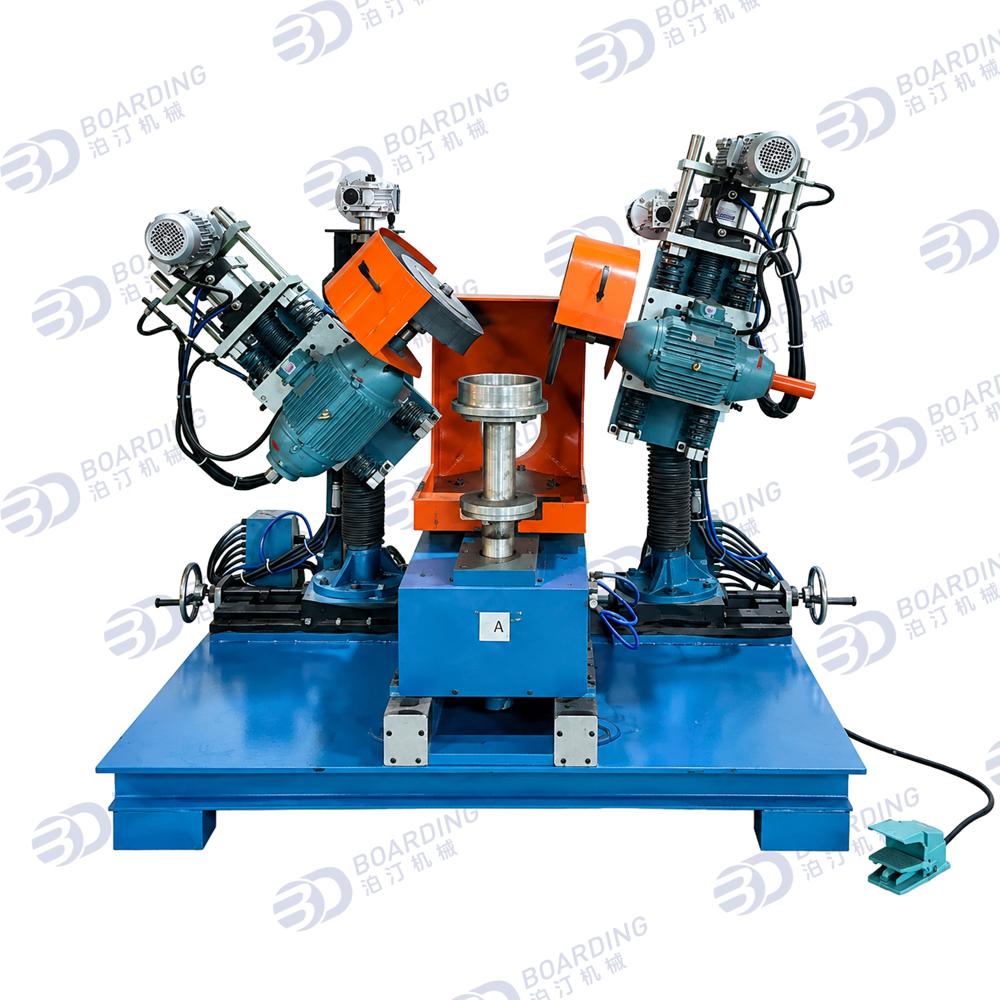

The External R Bottom and Edge Polishing Machine is a specialized surface finishing equipment designed for precision polishing of bottom R-angles and top edges of cylindrical metal containers. Equipped with dual high-power polishing heads (7.5 kW for R-angle and 4 kW for edge) operating at a spindle speed of 2900 rpm, it efficiently processes workpieces up to 350 mm in diameter and 250 mm in height, delivering smooth and uniform surface finishes for industrial mass production.
Key Features & Highlights:
-
Dual-Head Polishing System: Features dedicated motors for R-bottom angle polishing (7.5 kW) and edge polishing (4 kW).
-
High Spindle Speed: Operates at a polishing wheel spindle speed of 2900 rpm for optimal surface shine and defect removal.
-
Controlled Workpiece Rotation: Driven by a 0.55 kW workpiece motor running at a steady 56 rpm for consistent circumferential coverage.
-
Large Capacity Handling: Accommodates maximum workpiece dimensions up to 350 mm in diameter and 250 mm in height.
Industrial Applications: Widely applied for external bottom corner (R-angle) and top edge polishing of stainless steel cookware, pots, stockpots, pans, kettles, and round metal hardware containers.
Frequently Asked Questions (FAQ):
-
Q: What is the maximum workpiece size this polishing machine can handle?
-
A: It supports maximum workpiece dimensions of 350 mm in diameter by 250 mm in height.
-
Q: What are the power specifications for the polishing motors?
-
A: The R-angle polishing motor is 7.5 kW and the edge polishing motor is 4 kW.
