Product Description

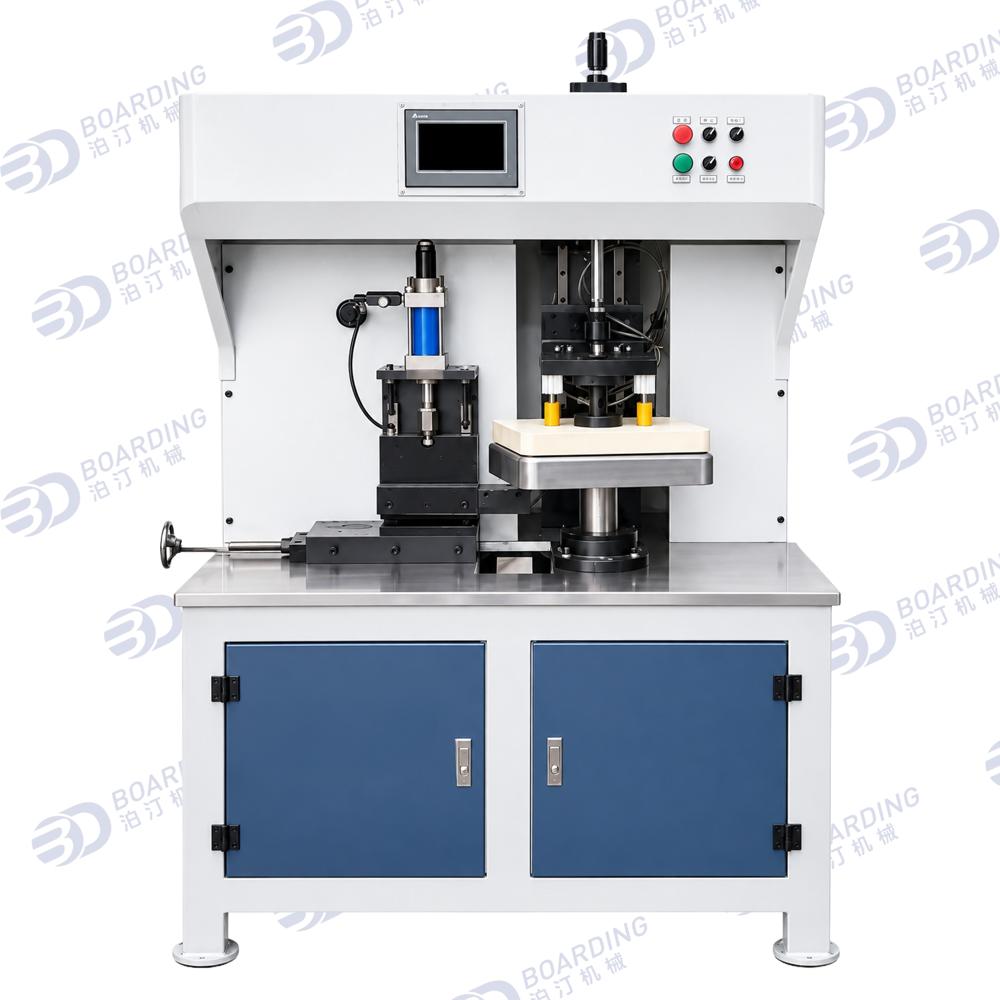

The Servo Trimming Machine (For Casting Alu.) is specifically engineered for precision edge trimming, deburring, and flash removal on die-cast aluminum cookware, pots, pans, and heavy-duty metal containers. Combining a dynamic servo motor drive with a high-pressure hydraulic system, programmable PLC, and HMI text control, this machine efficiently processes cast aluminum products up to $\phi 400\text{ mm}$ in diameter. Its rigid frame and screw rod adjustment mechanism ensure exceptionally clean cutting profiles, high accuracy, and fast production cycles.

Key Technical Features & Advantages

• Specialized for Die-Cast Aluminum: Tailored tool geometry and cutting dynamics designed specifically for the hardness and material characteristics of die-cast aluminum cookware.

• Servo Drive & Hydraulic System Integration: High-torque servo drive coupled with smooth hydraulic clamping delivers clean, burr-free edge shearing without cracking or deformation.

• Programmable Control & HMI: Features an industrial PLC controller paired with an intuitive HMI text interface for easy parameter adjustment and process monitoring.

• Screw Rod Size & Height Adjustment: Enables swift, precise adjustments for varying workpiece heights and sizes during batch transitions.

• Variable-Frequency Speed Regulation: Allows seamless spindle speed tuning to match different wall thicknesses and alloy grades.

•


Industrial Applications

• Die-cast aluminum cookware, stockpots, frying pans, and casserole rim trimming

• Cast metal container flash removal, deburring, and edge finishing

• Precision round aluminum vessel and hardware component processing

•


Frequently Asked Questions (FAQ)

Q1: What makes this machine specifically suitable for die-cast aluminum?

A: Die-cast aluminum requires precise force application and stable tool paths to avoid edge cracking. The combination of servo precision and hydraulic clamping ensures optimal trimming quality for cast aluminum profiles.

Q2: What is the processing capacity regarding workpiece dimensions?

A: It accommodates workpiece diameters up to $\le \phi 400\text{ mm}$, heights up to $\le 150\text{ mm}$, and wall/edge thicknesses from 0.8 mm to 5 mm.
