Product Description

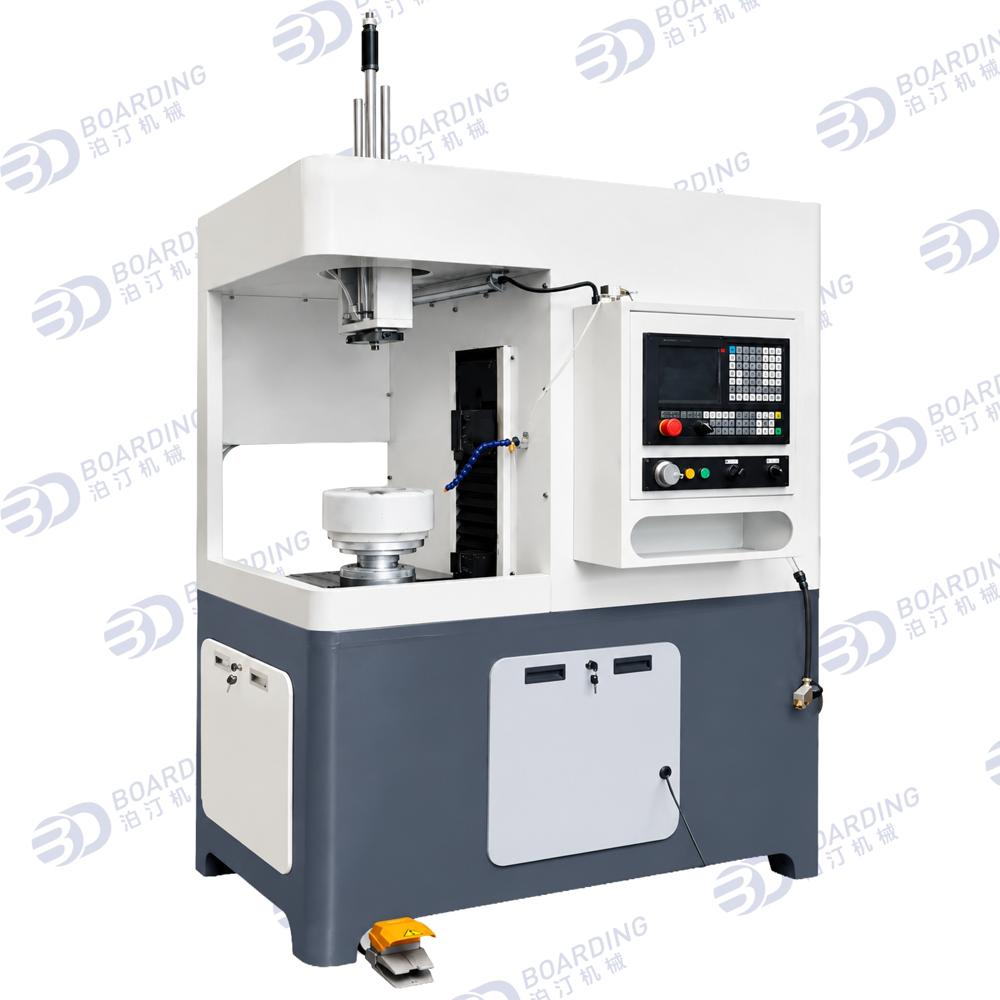

The Four-Axis CNC Grooving Machine is designed for high-precision base grooving, turning, and profile shaping of metal cookware and cylindrical metal components. Integrated with a multi-axis CNC system, servo motor drive, programmable PLC, and HMI interface, this machine delivers excellent dynamic performance, high repeatability, and flexible multi-angle machining capabilities.

Key Technical Features & Advantages

• 4-Axis CNC Motion Control System: Provides smooth multi-axis interpolation and synchronized movement for complex grooving and profile turning tasks.

• Servo Motor & Frequency Control: Servo drives combined with variable-frequency speed adjustment ensure steady torque, rapid acceleration, and precise positioning.

• PLC & HMI Interface: Programmable PLC control paired with user-friendly HMI enables convenient operator setup and quick parameter modifications.

• High Machining Flexibility: Easily processes workpieces up to 400 mm in diameter and 150 mm in height with wall thicknesses from 0.8 mm to 5 mm.

• Heavy-Duty Rigid Frame: Sturdy construction reduces processing vibration to guarantee fine surface finishes.

•


Industrial Applications

• Cookware bottom grooving and base turning (pots, pans, pressure cookers)

• Stainless steel, aluminum, and brass vessel profile machining

• Cylindrical hardware and decorative metal shell grooving

•


Frequently Asked Questions (FAQ)

Q1: What is the control architecture of this machine?

A: It utilizes a multi-axis CNC system backed by programmable PLC and HMI control for flexible multi-axis pathing.

Q2: What is the maximum processing diameter and height?

A: Maximum processing diameter is 400 mm and maximum processing height is 150 mm.
