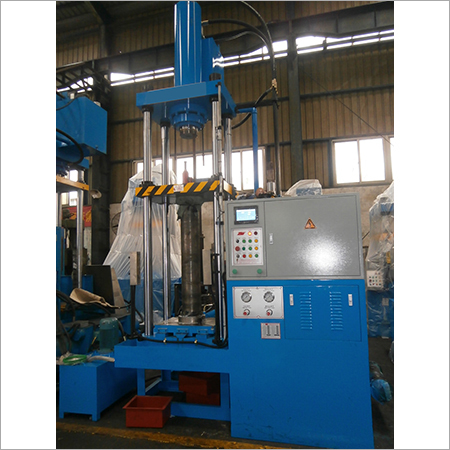

ZY07 Series Water Bulging Hydroforming Press
Product Details:
- Product Type Water Bulging Hydroforming
- Material SS
- Computerized No
- Automatic Grade Semi-Automatic
- Warranty 1 year
20000.00 USD ($)/Set
X
ZY07 Series Water Bulging Hydroforming Press Price And Quantity
- 1 Piece
- 20000.00 USD ($)/Set
ZY07 Series Water Bulging Hydroforming Press Product Specifications
- SS
- 1 year
- Semi-Automatic
- Water Bulging Hydroforming
- No
ZY07 Series Water Bulging Hydroforming Press Trade Information
- Shanghai
- 1-5 Piece Per Month
- 7-15 Days
- Contact us for information regarding our sample policy
- 1. Machine is packed by steel Frame and wrapped with PE film for waterproof. 2.Spare parts will be packed by plywood carton. 3.Steel Size is according to machine size. 4.If special requests is need, kindly let us know.
- All India
Product Description
Technical parameter:
| Model | YSZ203-150 | YSZ203-200 | YSZ203-250 | YSZ203-300 | YSZ203-400 |
| Nominal Force (KN) | 750 | 1000 | 1250 | 1500 | 2250 |
| Max pressure of liquid (Mpa) | 20 | 20 | 20 | 20 | 20 |
| Max stroke of Ram (mm) | 700 | 720 | 750 | 800 | 1000 |
| Speed of Ram: Down (mm/s) Pressing (mm/s) Return (mm/s) |
300 30 300 |
300 30 300 |
300 25 300 |
250 25 250 |
150 25 240 |
| Bed Aread(RLXFB) (mm2) | 540*500 | 600*600 | 600*600 | 600*650 | 600*650 |
| Push Force (KN) | 30 | 60 | 90 | ||
| Stroke of Push Slide (mm) | 200 | 250 | 250 | ||
| Moving Bed (mm) | 500*380 | 600*500 | 600*500 | 600*500 | 600*500 |
| Max pressure of Hydraulic Cylinder (KN) | 750 | 1000 | 1250 | 1500 | 1750 |
| Stroke of Hydraulic Cylinder (mm) | 300 | 350 | 350 | 350 | 350 |
| Water Cylinder Volume (L) | 4 | 4 | 4 | 3 | 3 |
| Max pressure of water Cylinder"s liquid (MPa) | 40-50 | 40-60 | 40-60 | 80-100 | 80-100 |
| Motor Output (KW) | 11+2.2 | 15+2.2 | 18.5+2.2 | 22+2.2 | 30+2.2 |
| Overall Size (RLXFBXH) (mm3) | 2440*1450*3300 | 2560*1880*3500 | 2660*1880*3500 | 2750*1880*3600 | 2850*1950*3800 |
| Total Weight (T) | 5.3 | 6 | 6.5 | 7.5 | 9.5 |
| Max open Height (mm) | 1300 | 1300 | 1300 | 1300 | 1500 |
The machine configuration:
- Hydraulic components adopt Taiwan products
- The electrical system adopts PC computer control, and the configuration screen.
- The photoelectric protector choose waterproof structured products.
- The sealers adopt products imported from Japan.
Structure description:
- The oil cylinder with welding cylinders, piston structure.Piston rod medium frequency heat treatment, surface hard chromium plating and polishing processing.
- The column is made of high quality round steel, medium frequency heat treatment, surface hard chromium plating and polishing processing.
- The tank is made of high quality high strength steel alloy production and precision grinding, used in the condition of high pressure, high reliability.
Enter Buying Requirement Details

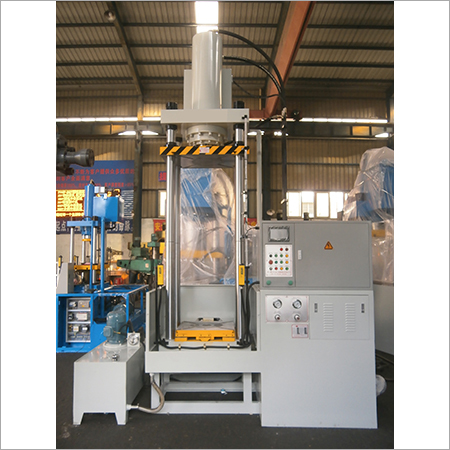

Other Products in 'Water Bulging Machine' category
